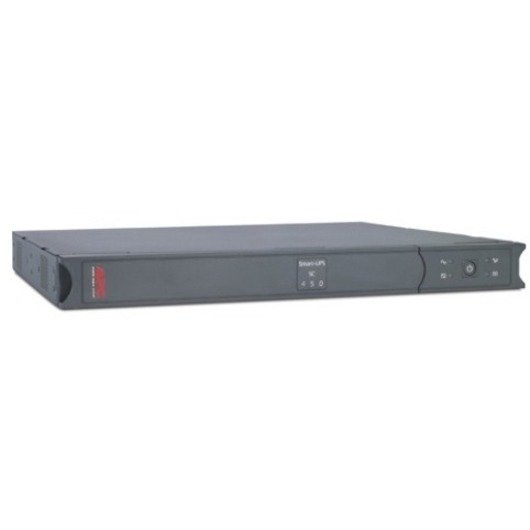

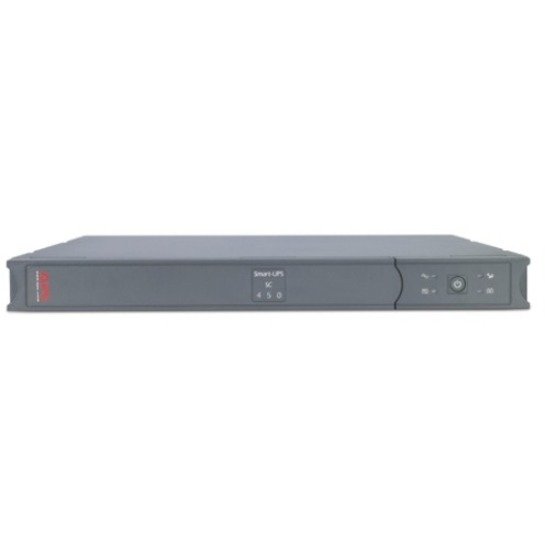

APC by Schneider Electric Smart-UPS SC 450VA Rackmount/Tower

APC by Schneider Electric Smart-UPS SC 450VA Rackmount/Tower
General Information

Manufacturer:

Schneider Electric SA

Manufacturer Part Number:

SC450RMI1U

Manufacturer Website Address:

http://www.schneider-electric.com

Brand Name:

APC by Schneider Electric

Product Line:

Smart-UPS

Product Series:

SC

Product Name:

Smart-UPS SC 450VA Rackmount/Tower

Marketing Information:

Smart-UPS SC 450VA Rackmount/Tower is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection.

Product Type:

Line-interactive UPS

Technical Information

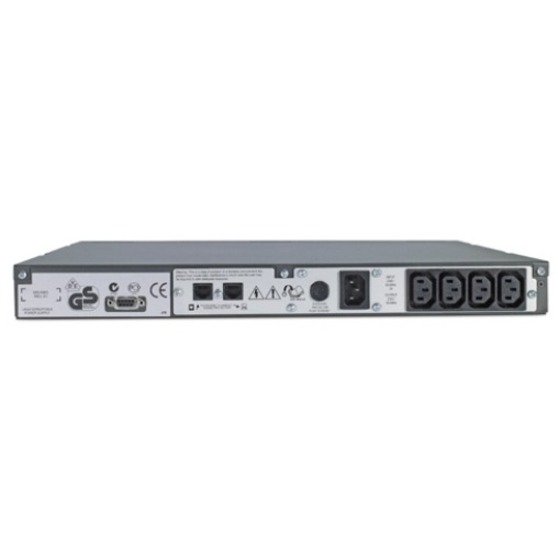

Plug/Connector Type:

IEC 320-C14

Receptacle Type:

IEC 60320 C13

Receptacle Detail:

4 x IEC 60320 C132

Number of Battery & Surge Outlets:

6

Dataline Protection:

RJ-45RJ-11

Emergency Power OFF:

Optional

Power Description

Load Capacity (VA):

450 VA

Load Capacity (Watt):

280 W

Input Voltage:

220 V AC

Output Voltage:

230 V AC

Waveform Type:

Stepped Sine Wave

Surge Energy Rating:

320 J

Management

Alarm:

On BatteryLow Battery

Battery Management:

Intelligent battery management

Controls/Indicators

Status Indicators:

On LineOn BatteryReplace BatteryOverload

Interfaces/Ports

Serial Port:

Yes

Battery Information

Battery Characteristics:

Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

5.90 Minute

Backup/Run Time (Half Load):

19.40 Minute

Hot Swappable:

Yes

Environmental Conditions

Maximum Operating Temperature:

113°F (45°C)

Sound Emission (A-Weighted):

38 dB(A)

Thermal Dissipation:

38 BTU/h

Physical Characteristics

Color Family:

Gray

Product Color:

Gray

Height:

1.72″ (43.69 mm)

Width:

17″ (431.80 mm)

Depth:

15.08″ (383.03 mm)

Rack Height:

1U

Form Factor:

Rack-mountable

Weight (Approximate):

10.16 kg

Miscellaneous

Package Contents:

Smart-UPS SC 450VA Rackmount/Tower CD with softwareRack mounting bracketsSmart UPS signalling RS-232 cableUser manual

Additional Information:

Output Voltage Distortion: Less than 5% at full loadCrest Factor: up to 5 : 1Replacement battery cartridge quantity: 1Units per Pallet: 24.00Front-access servicingMultiple mounting methodsBoost and Trim Automatic Voltage Regulation (AVR)Power conditioningCold-start capable

Certifications & Standards:

UL 1449C-tickCEEN 50091-1EN 50091-2GOSTPCBCVDE

Country of Origin:

Philippines

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

2 Year
