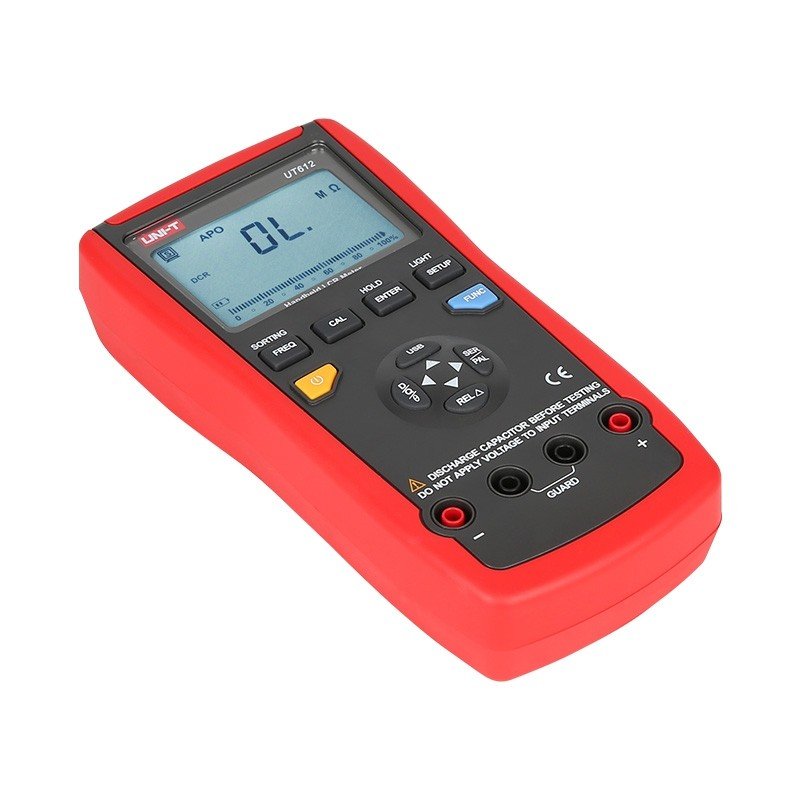

UNI-T UT612 LCR Meter

Original price was: $1,135.48.Current price is: $681.29.

In stock

Ships out in 7-14 business days

Buy it now
Brands:
SKU: UT612

Resolution 20Ω~200MΩ; Capacitance 200pF~20mF; Inductance 20uH~2000H; Test frequency 100Hz/120Hz/1kHz/10kHz/100kHz; Test parameters: L/C/R/DCR/Q/D/θ/ESR;
Specifications of UT612 LCR Meter

Specifications Range UT612
Inductance (H) 20uH~2000H ±(0.5%+5)
Capacitance (F) 200pF~20mF ±(0.5%+5)
Resistance (Ω) 20Ω~200MΩ ±(0.3%+5)
Test frequency (Hz) 100Hz/120Hz/1kHz/10kHz/100kHz √
Operating voltage 0.6Vrms √
Test parameters L/C/R/DCR/Q/D/θ/ESR √
Features
Display count 20000
D/Q display count 2000
D/Q resolution 0.001 √
Auto range √
Test frequency real-time display √
Measurement mode Series/Parallel √
Auto power off √
Low battery indication ≤6.8V √
Data hold √
Relative mode √
USB interface √
USB interface/PC data records 60000
LCD backlight √
Analog bar graph 26
Deviation ratio measurement √
Comparison function √
Calibration function √
Output impedance 120Ω √
Auto LCR check and measurement √
General Characteristics
Power 9V battery (6F22) or USB
Display 40mm x 63mm
Product color Red and grey
Product net weight 374g
Product size 96mm x 193mm x 47mm
Standard accessories Battery, SMD test clamp, USB interface cable, multi-purpose socket, PC software CD
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 370mm x 305mm x 475mm (0.097 CBM per standard carton)
Standard carton gross weight 13.2kg
Optional accessory USB power adaptor

Weight 29.11 lbs
Dimensions 14.57 × 12.01 × 18.7 in
Part No

180706180002

Brand

Warranty

12 Months warranty against manufacturers defects
