Features of UT-L Series Test Leads
UT-L01 Tweezers test leads
UT-L01 Tweezers test leads
● Length: 450mm, Probe length: 5mm
● Safety level: CAT III 1000V
● Application:
SMT components measurement, universal test leads
● Amount: 1pc
UT-L02 BNC alligator clip test leads
UT-L02 BNC alligator clip test leads
● Length: 1000mm, Clip opening: 3mm
● Safety level: CAT II 600V 2A
● Application:
BNC connector for instrument inputs
● Amount: 1pc
UT-L06 Dual head connectors
UT-L06 Dual head connectors
● Length: test leads 1200mm
● Safety level:
CAT III 1000V 10A
● Application:
Multifunctional connectors,
all multimeters and clamps
● Amount: 1 pair
UT-L07 Probes
UT-L07 Probes
● Length: 1000mm, Probe length: 5mm+12mm
● Temperature condition: -15°C~40°C
● Safety level: CAT III 1000V 10A
● Features and application: Double insulated, lantern probes, removable probe protector, general type probles, all multimeters and clamps measuring within spec
● Amount: 1 pair
UT-L09 Dual head connectors
UT-L09 Dual head connectors
● Length: 1000mm, one head is 180º, the other is 90º
● Temperature condition: -15°C~40°C
● Safety level: CAT III 1000V 10A
● Features and application: Double insulated, lantern plug with security mask and standard diameter, suitable for multiple devices, all multimeters and clamps
● Amount: 1 pair
UT-L10 Dual head multifunctional connectors
UT-L10 Dual head multifunctional connectors
● Length: 1000mm, ø4mm
● Temperature condition: -15°C~40°C
● Safety level: CAT III 1000V 10A
● Features and application:
Banana plug,
used for testing adapter cables
● Amount: 1 pair
UT-L13 Probes
UT-L13 Probes
● Leads length: 1200mm, Rod length: 128mm
● Tip length: 18mm, with ø4mm standard lantern tip
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Temperature condition: -15°C~40°C
● Features and application: Double insulated UL, authenticated material, ø4mm standard lantern-tip probe, which can be connected to standard alligator clips and test leads removable tip shield sleeve, general type probes
● Amount: 1 pair
UT-L16 Probes
UT-L16 Probes
● Length: 1200mm, Rod length: 133mm
● Tip length: 18mm
● Safety level: CAT III 1000V 16A
● Features and application:
Double insulated silicone wire material,
through hole type input terminal,
general type probes,
all multimeters and clamps measuring within spec
● Amount: 1 pair
UT-L17 Probe with LED light
UT-L17 Probe with LED light
● leads length: 1000mm
● Tip length: 16mm
● Safety level: CAT II 1000V 10A
● Features and application: Controllable LED light source, all multimeters and clamps measuring within spec
● Amount: 1PC
UT-L20 Probes
UT-L20 Probes
● Leads length: 900mm, Rod length: 101mm
● Tip length: 16.5mm
● Safety level: CAT I 1000V/CAT II 600V 10A
● Features and application: Cross plug with shield sleeve, general type probes, all multimeters and clamps measuring within spec
● Amount: 1 pair
UT-L21 Probes
UT-L21 Probes
● Leads length: 900mm, Rod length: 133mm
● Tip length: 15.8mm
● Safety level: CAT III 1000V/CAT IV 600V 20A
● Features and application:
Cross plug with shield sleeve,
general type probes,
all multimeters and clamps
● Amount: 1 pair
UT-L25 Probes
UT-L25 Probes
● Leads length: 900mm, Rod length: 115mm
● Tip length: 18mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Safety cetificate: EN 61010-031 A1: 2015
● Features and application: Double insulated wire, removable tip shield sleeve, general type probes, all multimeters and clamps measuring within spec
● Amount: 1 pair
UT-L26 Probes
UT-L26 Probes
● Leads length: 900mm, Rod length: 136mm
● Tip length: 15.7mm
● Safety level: CAT III 1000V/CAT IV 600V 20A
● Safety certificate: EN 61010-031 A1: 2015
● Features and application:
UL 16AWG double insulated wire, removable tip shield sleeve, cross type input terminal with full protection, general type probes, all multimeters and clamps
● Amount: 1 pair
UT-L27 Probes
UT-L27 Probes
● Leads length: 900mm, Rod length: 130mm
● Tip length: 16.3mm, threaded
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Safety certificate: EN 61010-031 2015
● Features and application: Double insulated UL authenticated material, removable tip shield sleeve, lantern plug input terminal, general type probes, all multimeters and clamps measuring withing spec
● Amount: 1 pair
UT-L28 Probes
UT-L28 Probes
● Leads length: 900mm, Rod length: 128mm
● Tip length: 16.8mm
● Safety level:
CAT III 1000V/CAT IV 600V 10A
● Features and application:
Double insulated wire, removable tip shield sleeve, lantern plug input terminal, general type probes, all multimeters and clamps measuring within spec
● Amount: 1 pair
UT-L29 Probes
UT-L29 Probes
● Leads length: 900mm, Rod length: 136mm
● Tip length: 15.7mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Safety certificate: EN 61010-031 2015
● Features and application: Double insulated UL authenticated material, through hole crosshead with full protection input, removable tip shield sleeve, general type probes, all multimeters and clamps measuring within spec
● Amount: 1 pair
UT-L30 Probes
UT-L30 Probes
● Leads length: 900mm, Rod length: 136mm
● Tip length: 15.7mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Safety certificate: EN 61010-031 2015
● Features and application: Double insulated UL authenticated material, removable tip shield sleeve, cross input terminal, general type probes, all multimeters and clamps measuring spec
● Amount: 1 pair
UT-L31 Probes
UT-L31 Probes
● Line length: 1300mm
● Tip length: 18.5mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Features and application:
rod with switch,
removable tip shield sleeve,
used for UT505B
● Amount: 1PC
UT-L32 Group test leads
UT-L32 Group test leads
● Combinations: combined with 2PCS test leads, (reb+black) and (yellow+blue)
● Material: Double insulated leads
● Line length: 1090mm
● Safety level: CAT III 600V/CAT IV 300V
● Application: UT243
● Amount: 1 Group
UT-L33 Group test leads
UT-L33 Group test leads
● Combinations: combined with 1PCS (red+black) alligator clip test leads and 1PCS double-plug alligator clip test leads
● Material: Double insulated UL authenticated material
● Total length: 1200±20mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Application: UT511
● Amount: 1 Group
UT-L34 Group test leads
UT-L34 Group test leads
● Combinations:
combined with 1PCS green, 1PCS black and 1PCS red alligator clip test leads
● Total length: 1500±20mm
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Application: UT513, UT513A
● Amount: 1 Group
UT-L35 Group test leads
UT-L35 Group test leads
● Combination:
(1) 1.6m test lead (green+red) 1pair (2) 5m green test lead 1PCS (3) 10m yellow test lead 1PCS (4) 20m red test lead 1PCS
● Material: UL authenticated material
● Safety level: CAT III 1000V/CAT IV 600V 10A
● Application: UT521, UT522, UT572
● Amount: 1 Group
UT-L36 Dual through hole test leads
UT-L36 Dual through hole test leads
● Material: 18AWG UL authenticated material
● Length: 1100mm
● Safety level: CAT III 1000V/CAT IV 600V
● Application: UT505B
● Amount: 1 pair
UT-L37 Dual through hole test leads
UT-L37 Dual through hole test leads
● Material: Double insulated wire, 102 cores
● Length: 1090mm
● Safety level: CAT III 1000V/CAT IV 600V
● Application: UT500 series
● Amount: 1 pair
UT-L38 Group test leads
UT-L38 Group test leads
● Material: Double insulated wire, 102 cores Length: 1090mm
● Safety level: CAT III 600V/CAT IV 300V
● Features and application: with buckle, used for UT261A/B
● Amount: 3PCS

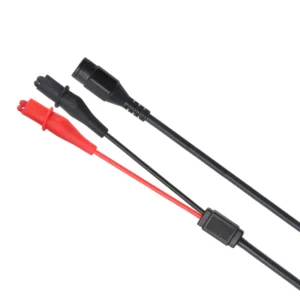

UT-L39 Alligator clip test leads with shield sleeve
UT-L39 Alligator clip test leads with shield sleeve
● Material: Double insulated wire
● Length: 1000±50mm
● Features and application: Adapter plug with BNC
● Amount: 1PC
UT-L40 SMD patch clamp
UT-L40 SMD patch clamp
● Leads length: 450mm, probe length: 5mm
● Temperature condition: -10°C~40°C
● Safety level: CAT II 1000V 2A
● Features and application: used to SMT components, for UT612
● Amount: 1PC
UT-L41 Alligator clip short test leads
UT-L41 Alligator clip short test leads
● Core: 19/20
● Length: 110-130mm
● Features and application: full protection cross input terminal, used for UT71 series, UT601, UT603
● Amount: 1 pair
UT L46 Four wire test probes
UT-L46 Four-wire test probes
● Leads material:
182-core double shielded wire
● Lead length:
1000mm
● Amount: 1 pair
UT-C06 Test probes
UT-C06 Test probes
● Specifications: Rod length 106mm, probe length 19mm
● Safety level: CAT II 1000V 2A
● Features:
Fully-insulated, with tip and protector, banana plug probes
● Amount: 1 pair
UT-C08 Test probes
UT-C08 Test probes
● Specifications: Rod length 99mm, probe length 18mm
● Safety level: CAT II 1000V/CAT IV 600V 10A
● Features:
Fully-insulated, with tip and protector, straight type probes
● Amount: 1 pair
UT-C09 Test probes
UT-C09 Test probes
● Specifications: Rod length 99mm, probe length 18mm
● Safety level: CAT II 1000V/CAT IV 600V 10A
● Features:
Fully-insulated, with tip and protector, lantern type probes
● Amount: 1 pair
