Description

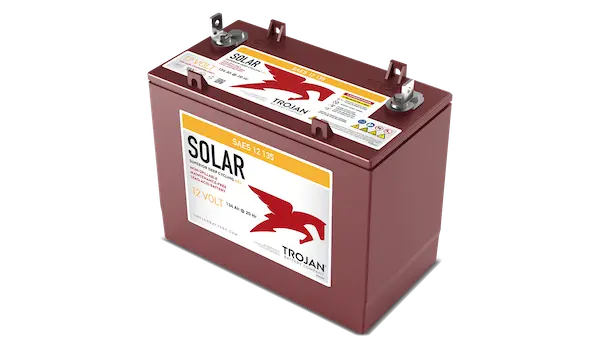

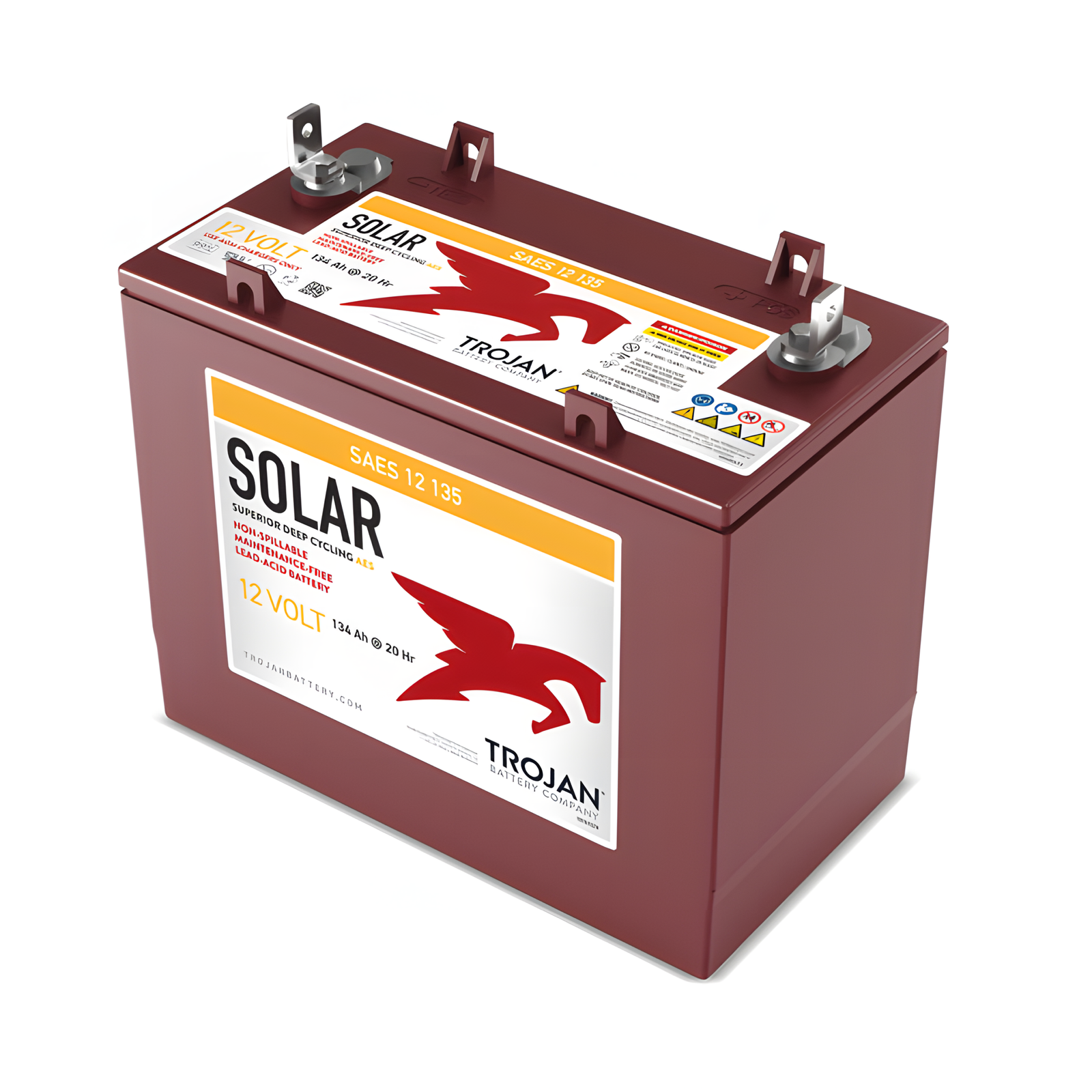

High-Performance 12V Solar Cycling: The Trojan SAES 12 135
The Solar SAES 12 135 12V AES battery provides enough energy storage to offer outstanding power performance in various renewable energy applications. Trojan Solar AES delivers up to 3x the cycle life of standard AGM with high sustained performance. Trojan Solar AES batteries maintain high capacity in extreme deep cycling (up to 100% DoD), in challenging temperatures and partial charging conditions.
Features and Benefits
- Up to 3x longer cycle life than standard AGM. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.
- Robust performance in extreme temperatures and conditions. Temperature range from -40 °F to 160°F (-40° C to 71° C).
- Tested to withstand partial state of charge, again and again.
- Virtually no maintenance as watering is not required.
- Trojan AES is classified as non-spillable and can be safely mounted horizontally to fit difficult locations. It’s made using 80% recycled materials and is 99% recyclable.
- Designed and manufactured to absorb vibration and shock.
- This VRLA battery is backed by a three-year warranty.
- Charge with existing AGM charger and profiles.
| Voltage | 12V |
| Capacity @ 10hr Rate | 115 Ah |
| Capacity @ 20hr Rate | 134 Ah |
| Capacity @ 48hr Rate | 137 Ah |
| Capacity @ 72hr Rate | 139 Ah |
| Capacity @ 100hr Rate | 140 Ah |
| Energy @ 20hr | 1.68 kWh |
| Operating Temperature | -40 °F to 160°F (-40° C to 71° C) |
| Terminal Type | M8 Insert with M8 LT Adapter |
| Weight lbs. (kg) | 83 (38) |
| Dimensions In. (mm) (LxWxH) | 12.96 x 7.06 x 10.96 (329 x 179 x 278) |
