Tripp Lite by Eaton SMART1500PSGLCD 1500VA Tower UPS
Tower – AVR – 7 Hour Recharge – 3 Minute Stand-by – 120 V AC Input – 120 V AC Output – Single Phase – Pure Sine Wave – USB – LCD Display – 10 x NEMA 5-15R
Purpose-Built Gaming UPS Protects Your Equipment and Provides Pure Sine Wave Output
This 120V line-interactive UPS provides pure sine wave output in both AC and battery backup modes to keep your gaming PC or gaming console reliably powered. It also protects connected equipment against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART1500PSGLCD is ideal protection for high-end gaming systems powered by Active PFC power supplies, as well as routers, modems and other network equipment in your computer room, game room or home theater. Reliable, Expandable Battery Backup Keeps You Playing Through Power Outages
The field-replaceable, hot-swappable internal battery keeps your gaming rig fully operational without interruption during power failures and other severe power conditions. With a typical 300W gaming system connected, the SMART1500PSGLCD provides 17 minutes of independent runtime. This allows you to play through short power failures, avoid streaming interruptions and safely save your game and shut down your system in case of a prolonged blackout. For additional play, the UPS supports an optional Tripp Lite BP24V9T external battery pack (sold separately), which provides 41 minutes of expanded runtime. 10 NEMA 5-15R Outlets Protect Your Connected Components and Monitor Load Conditions

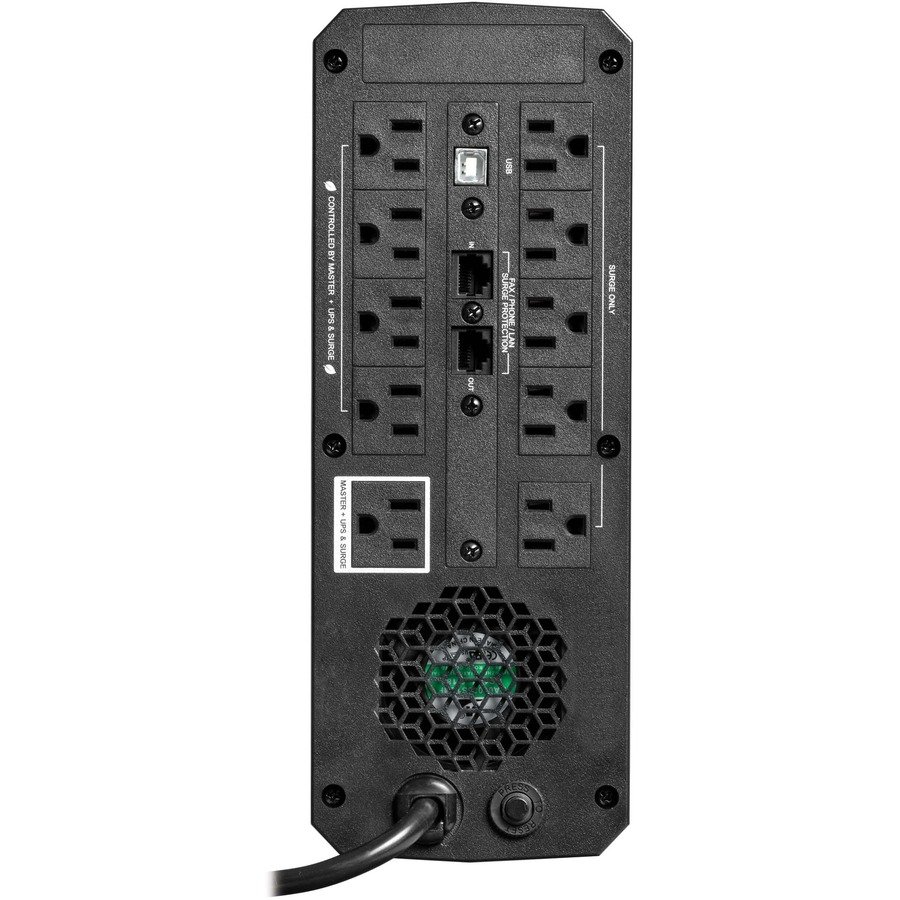

Four 5-15R energy-saving outlets provide battery backup and network-grade surge protection for your gaming rig and connected desktop and network components. Five outlets are surge-only to connect peripherals not requiring battery backup, such as a printer or desk lamp. One battery- and surge-supported master outlet controls the energy-saving outlets and reports the wattage drawn by the PC or other connected device. If the device connected to the master outlet shuts down or enters standby, the three energy-saving outlets also turn off. Dynamic Lighting Adds Excitement to Your Gaming Experience
The SMART1500PSGLCD is purpose-built for gaming, including RGB color LEDs you can program yourself. Controllable via the detachable front-panel LCD or Tripp Lite’s free downloadable software utility (https://www.tripplite.com/products/management-utilities), two separate LED banks come with seven preset lighting modes and 16.7 million possible color combinations. You can program a variety of color and motion effects or configure the lights to respond to power consumption changes on the master outlet. Detachable Wireless LCD Reports Real-Time Status

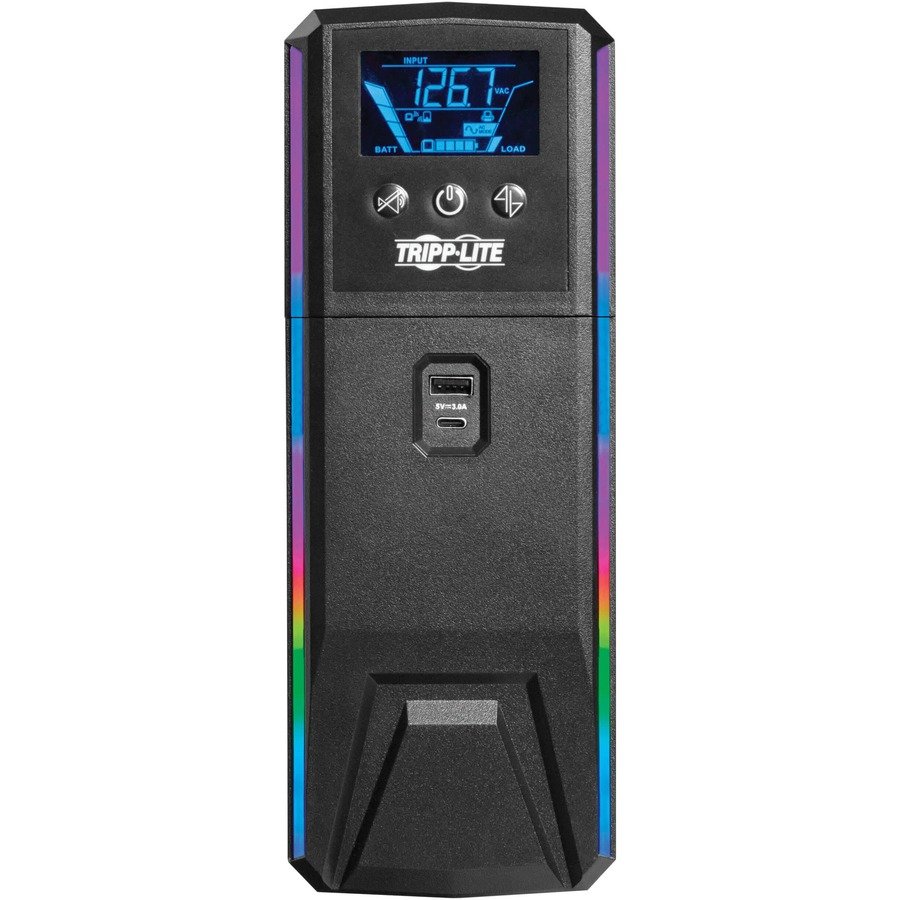

The front-panel LCD displays a wide range of UPS and power conditions, including operating mode, voltage, frequency, battery level and load level. It detaches from the UPS system and operates wirelessly up to 20 feet (6 meters) away for as many as 12 hours. More from the Manufacturer
Package Contents:
SMART1500PSGLCD 1500VA Tower UPS USB Cable Owner’s Manual
General Information
Manufacturer:
Tripp Lite by Eaton
Manufacturer Part Number:
SMART1500PSGLCD
Brand Name:
Tripp Lite by Eaton
Product Model:
SMART1500PSGLCD
Product Name:
SMART1500PSGLCD 1500VA Tower UPS
Marketing Information:
Purpose-Built Gaming UPS Protects Your Equipment and Provides Pure Sine Wave Output
This 120V line-interactive UPS provides pure sine wave output in both AC and battery backup modes to keep your gaming PC or gaming console reliably powered. It also protects connected equipment against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART1500PSGLCD is ideal protection for high-end gaming systems powered by Active PFC power supplies, as well as routers, modems and other network equipment in your computer room, game room or home theater. Reliable, Expandable Battery Backup Keeps You Playing Through Power Outages
The field-replaceable, hot-swappable internal battery keeps your gaming rig fully operational without interruption during power failures and other severe power conditions. With a typical 300W gaming system connected, the SMART1500PSGLCD provides 17 minutes of independent runtime. This allows you to play through short power failures, avoid streaming interruptions and safely save your game and shut down your system in case of a prolonged blackout. For additional play, the UPS supports an optional Tripp Lite BP24V9T external battery pack (sold separately), which provides 41 minutes of expanded runtime. 10 NEMA 5-15R Outlets Protect Your Connected Components and Monitor Load Conditions
Four 5-15R energy-saving outlets provide battery backup and network-grade surge protection for your gaming rig and connected desktop and network components. Five outlets are surge-only to connect peripherals not requiring battery backup, such as a printer or desk lamp. One battery- and surge-supported master outlet controls the energy-saving outlets and reports the wattage drawn by the PC or other connected device. If the device connected to the master outlet shuts down or enters standby, the three energy-saving outlets also turn off. Dynamic Lighting Adds Excitement to Your Gaming Experience
The SMART1500PSGLCD is purpose-built for gaming, including RGB color LEDs you can program yourself. Controllable via the detachable front-panel LCD or Tripp Lite’s free downloadable software utility (https://www.tripplite.com/products/management-utilities), two separate LED banks come with seven preset lighting modes and 16.7 million possible color combinations. You can program a variety of color and motion effects or configure the lights to respond to power consumption changes on the master outlet. Detachable Wireless LCD Reports Real-Time Status
The front-panel LCD displays a wide range of UPS and power conditions, including operating mode, voltage, frequency, battery level and load level. It detaches from the UPS system and operates wirelessly up to 20 feet (6 meters) away for as many as 12 hours.
Product Type:
Line-interactive UPS
Technical Information
AVR:
Yes
Plug/Connector Type:
NEMA 5-15P
Receptacle Type:
NEMA 5-15R
Receptacle Detail:
10 x NEMA 5-15R
Number of Surge-only Outlets:
5
Transfer Time:
6 ms
EMI/RFI Noise Filter:
Yes
Phase:
Single Phase
Energy Saving:
Greater than 95% efficiency – GREEN UPS; Power saving auto-shutoff ECO outlets
Application/Usage:
Gaming ConsoleRouterModemNetwork EquipmentComputer RoomHome TheaterPrinterGaming PCDesk Lamp
Power Description
Load Capacity (VA):
1500 kVA
Load Capacity (Watt):
900 W
Input Voltage:
120 V AC
Output Voltage:
120 V AC
Output Frequency:
60 Hz
Waveform Type:
Pure Sine Wave
Surge Energy Rating:
316 J
Display & Graphics
Display:
LCD
Management
Alarm:
Battery Mode Full ChargeBattery Mode Low ChargeReplace BatteryFault
Controls/Indicators
Status Indicators:
STATUS INFORMATION:
Input Voltage Input Frequency Battery Voltage Battery Capacity Estimated Runtime Output Voltage Output Frequency Output Watts Output Load % Master Outlet Power Consumption (Watts) Detachable LCD Module Battery Voltage Firmware Revision CONFIGURATION OPTIONS:
Eco-mode Off Eco-mode On Alarm Disable LED Lighting Configurations ERROR MESSAGES: Replace Battery Overload Critical Fault
Interfaces/Ports
USB:
Yes
USB (HID Compliant) Port:
Yes
Battery Information
DC System Voltage:
24 V DC
Battery Chemistry:
Lead Acid
Backup/Run Time (Full Load):
3 Minute
Backup/Run Time (Half Load):
10 Minute
Typical Battery Recharge Time:
7 Hour
Hot Swappable:
Yes
Environmental Conditions
Maximum Operating Temperature:
104°F (40°C)
Storage Temperature:
5°F (-15°C) – 122°F (50°C)
Thermal Dissipation:
98 BTU/h
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
11.02″ (280 mm)
Width:
4.13″ (105 mm)
Depth:
16.93″ (430 mm)
Form Factor:
Tower
Weight (Approximate):
13.27 kg
Miscellaneous
Package Contents:
SMART1500PSGLCD 1500VA Tower UPS USB Cable Owner’s Manual
Energy Star:
Yes
Country of Origin:
Vietnam
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
