StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch with Audio & USB Hub
StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch with Audio & USB Hub
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 4 multimedia computers – Dual Monitor KVM – dual monitor kvm switch – usb kvm switch – 4 port kvm switch – dvi vga kvm

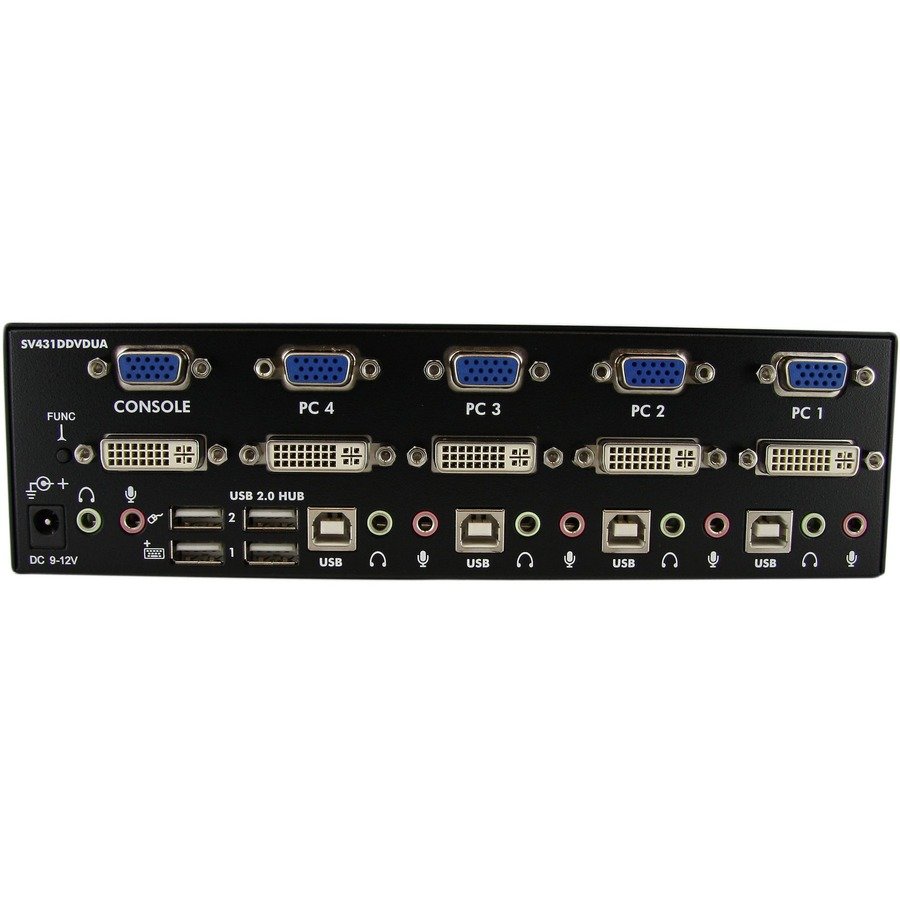

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set. This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers. The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance. NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. Rackmount your KVM switch If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM. More from the Manufacturer
Package Contents:
4-Port DVI and VGA, USB KVM Switch with Audio and USB 2.0 Hub 4 x Rubber Feet 1 x Universal Power Adapter (NA/EU/UK/AU) 1 x Instruction Manual
General Information
Manufacturer:
StarTech.com
Manufacturer Part Number:
SV431DDVDUA
Manufacturer Website Address:
http://www.startech.com
Brand Name:
StarTech.com
Product Name:
4-Port DVI and VGA, USB KVM Switch with Audio and USB 2.0 Hub
Marketing Information:
Packaged Quantity:
1
Product Type:
KVM Switchbox
Technical Information
Number of Computers Supported:
4
Number of Local Users Supported:
1
Video
Graphic Mode:
SVGAWUXGA
Maximum Video Resolution:
1920 x 1440
Interfaces/Ports
USB:
Yes
DVI:
Yes
VGA:
Yes
Number of USB Ports:
8
Number of DVI Ports:
5
Number of VGA Ports:
5
Power Description
Input Voltage:
110 V AC
Input Voltage Range:
100V AC to 240V AC
Physical Characteristics
Product Color:
Black
Form Factor:
Rack-mountableDesktop
Height:
2.40″ (60.96 mm)
Width:
8.70″ (220.98 mm)
Depth:
5.10″ (129.54 mm)
Weight (Approximate):
1.30 kg
Miscellaneous
Package Contents:
4-Port DVI and VGA, USB KVM Switch with Audio and USB 2.0 Hub 4 x Rubber Feet 1 x Universal Power Adapter (NA/EU/UK/AU) 1 x Instruction Manual
Additional Information:
High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration.Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.Absolutely no software or drivers required providing a completely OS independent KVM solution.
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
