The Starmax High-Temperature GEL Deep Cycle AGM Battery is a high-performance deep cycle GEL AGM battery designed for solar power systems, off-grid energy storage, wind power applications, sweepers, golf carts, and light industrial electric vehicles. Built for extreme temperatures (-15°C to 60°C), it features low self-discharge (2–3% per month at 25°C), a 50% DOD cycle life of over 3,000 cycles, and a float service life of 12–15 years. Supports fast charging and comes with CE, UL, ISO, and IEC certifications. Available in a grey body with black cover, it offers 1–3 years warranty depending on application, providing reliable, long-lasting power for industrial and renewable energy applications.
| Specification | Value |
|---|---|

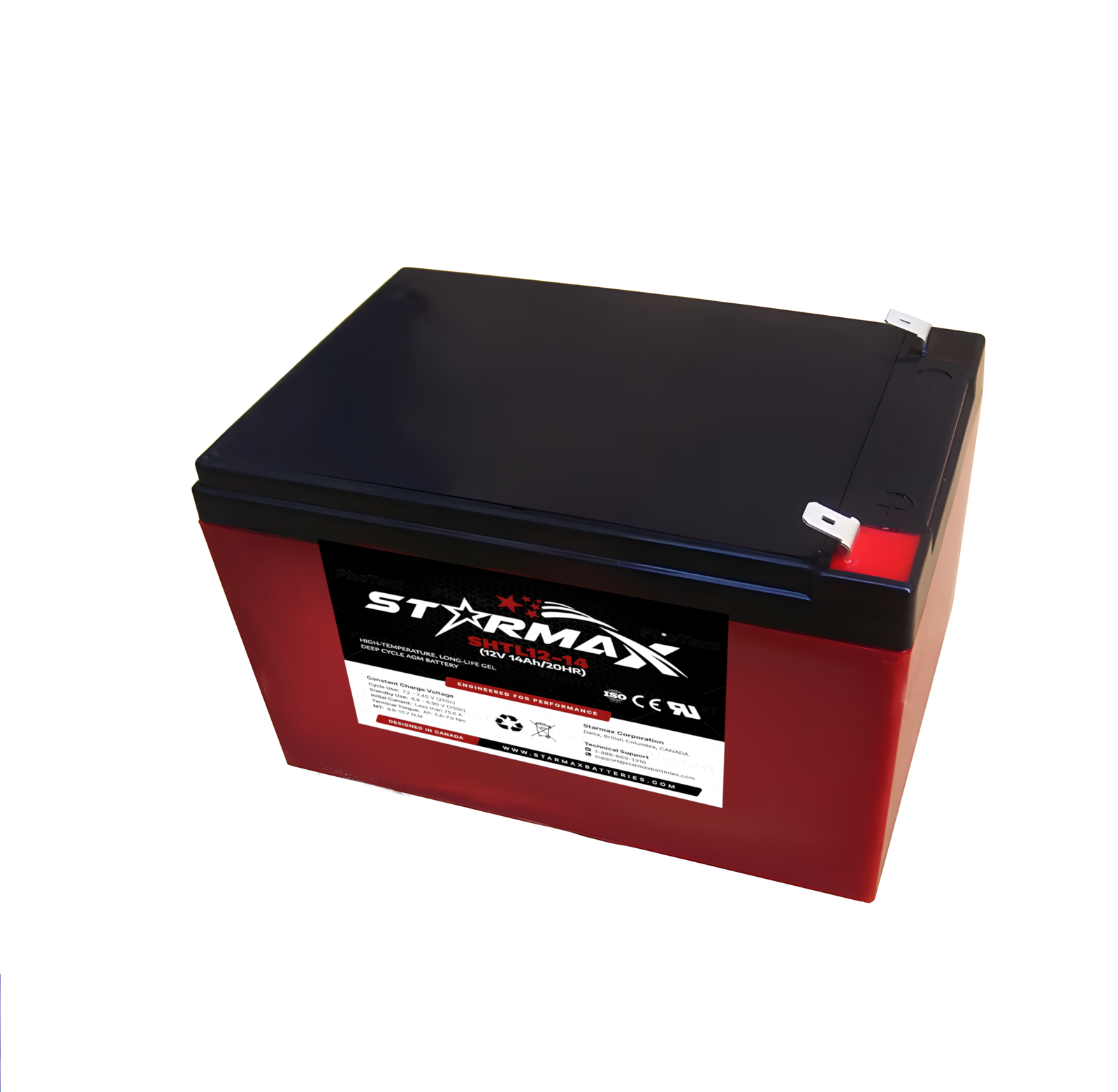

| Product / Model | Starmax SHTL12-14 (12V 14Ah) — High-Temperature GEL / Deep-Cycle (compiled from HTL/SHTL family) |
| Battery type / Chemistry | GEL (High-Temperature Deep Cycle) / VRLA (AGM variant referenced in family listings) |
| Nominal voltage | 12 V |
| Rated capacity (20-hr / 10-hr) | 14 Ah (typical rating — 10-hr or 20-hr depending on OEM datasheet) |
| Dimensions (L × W × H) | ~150 × 98 × 98 mm (typical for 12V14Ah) — convert to 5.91 × 3.86 × 3.86 in |
| Weight | ≈ 4.0–4.6 kg (≈ 8.8–10.1 lb) (varies by manufacturer / case) |
| Internal resistance | ~11 mΩ (example value from comparable listings) |
| Max. discharge current (pulse) | ~90 A (short pulse; check OEM datasheet for exact pulse rating) |
| Recommended max charge current | ~0.1C–0.3C (typical: 1.4 A – 4.2 A). OEMs often quote 6 A max for fast charge on similar models — verify per datasheet. |
| Float charge voltage (25°C) | ~13.6 – 13.8 V |
| Cycle charge voltage | ~14.4 – 14.8 V (dependent on temperature compensation) |
| Designed cycle life | ~1,500–1,600 cycles @ 50% DOD (HTL GEL family claims; long-life gel ranges shown on CSPower catalog) |
| Operating temperature | Charge / discharge / storage ranges vary — HTL high-temp units rated for higher ambient (examples show operation across approx. -20°C to +55°C; warranty quoted at 35–40°C for HTL family) |
| Warranty (typical) | ~2–3 years (CSPower HTL family lists 3 years at 35–40°C average) |
| Certifications | ISO9001, CE, IEC60896 (typical for CSPower / supplier listings) — confirm on the manufacturer’s datasheet |
| Typical applications | Solar / off-grid, UPS, telecom standby, mobility / scooters, deep-cycle applications |
| Manufacturer / reference | Compiled from CSPower (cspbattery.com) HTL family pages and supplier listings on Made-in-China & Alibaba. See sources below. |
