World’s 1st free-standing PV inverter for commercial rooftops, carports, ground mount and repowering legacy solar projects; requires no additional racking for rooftop installations. Up to 60% faster installation for commercial PV systems. Integrated DC and AC disconnects and overvoltage protection. 12 direct string inputs for reduced labor and material costs.
Integrated SunSpec PLC signal for module-level rapid shutdown compliance to 2017 NEX. Next-gen DC AFCI arc-fault protection certified to new Standard UL 1699B Ed. 1.

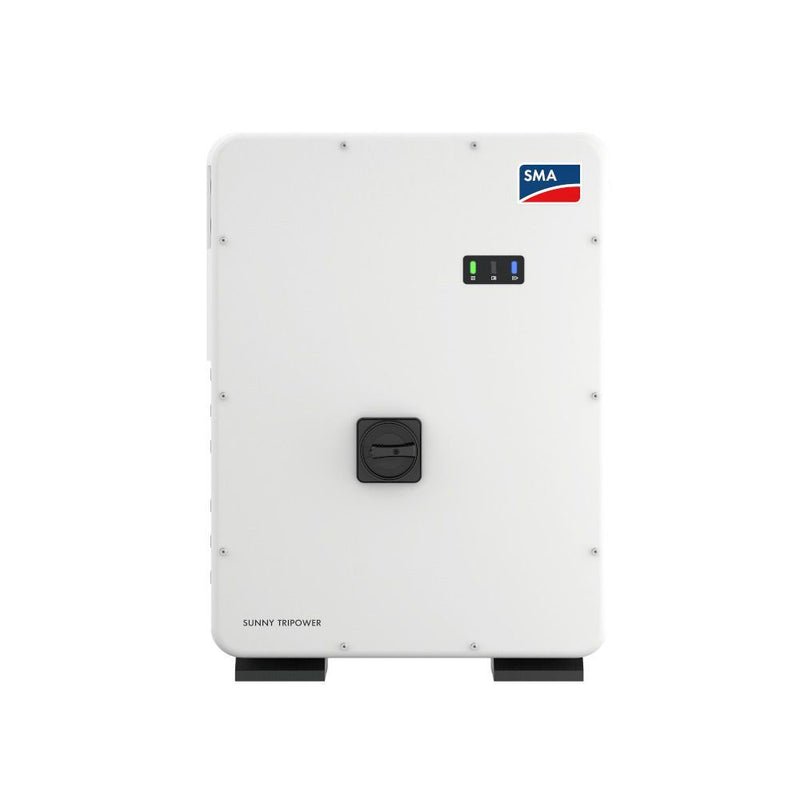

SMA Sunny Tripower CORE1 62kW (STP 62-US-41) Characteristics:
• Mounting: free-standing with included mounting feet
• Sunspec Certified
• DC connection: Amphenol UTX PV connectors
• AC connection; Screw terminals – 4 AWG to 4/0 AWG CU/AL
• Standard LED indicators (Status / Fault /Communication)
• Standard network interfaces: Ethernet (2 ports) /WLAN
• Standard data protocols: SMA Modbus /SunSpec Modbus /Webconnect
• Standard multifunction relay
• OptiTrac Global Peak (shade-tolerant MPP tracking)
• Integrated Plant Control /Q on Demand 24/7
• Off-Grid capable /SMA Fuel Save Controller compatible
• SMA Smart Connected (proactive monitoring and service support)
• Certifications and approvals: UL 1741, UL 1699B Ed. 1, UL 1998, CSA 22.2 107-1, PV Rapid Shutdown System Equipment
• Advanced grid support capabilities: L/HFRT, L/HVRT, Volt-VAr, Volt-Watt, Frequency-Watt, Ramp Rate Control, Fixed Power Factor
Characteristics
- Manufacturer: SMA
- Model: STP 62-US-41 03-62-1000-2-41
- Other Vendor Codes: 330-0549 KU21139 03-62-1000-2-41 030-02992
- Rated Power Output [W]: 62500
- Length [mm (in)]: 733 mm (28.8 in)
- Width [mm (in)]: 621 mm (24.4 in)
- Depth [mm (in)]: 569 mm (22.4 in)
- Weight [kg (lb)]: 84 kg (185 lbs)
- Wormanship Warranty Period [Years]: 10
