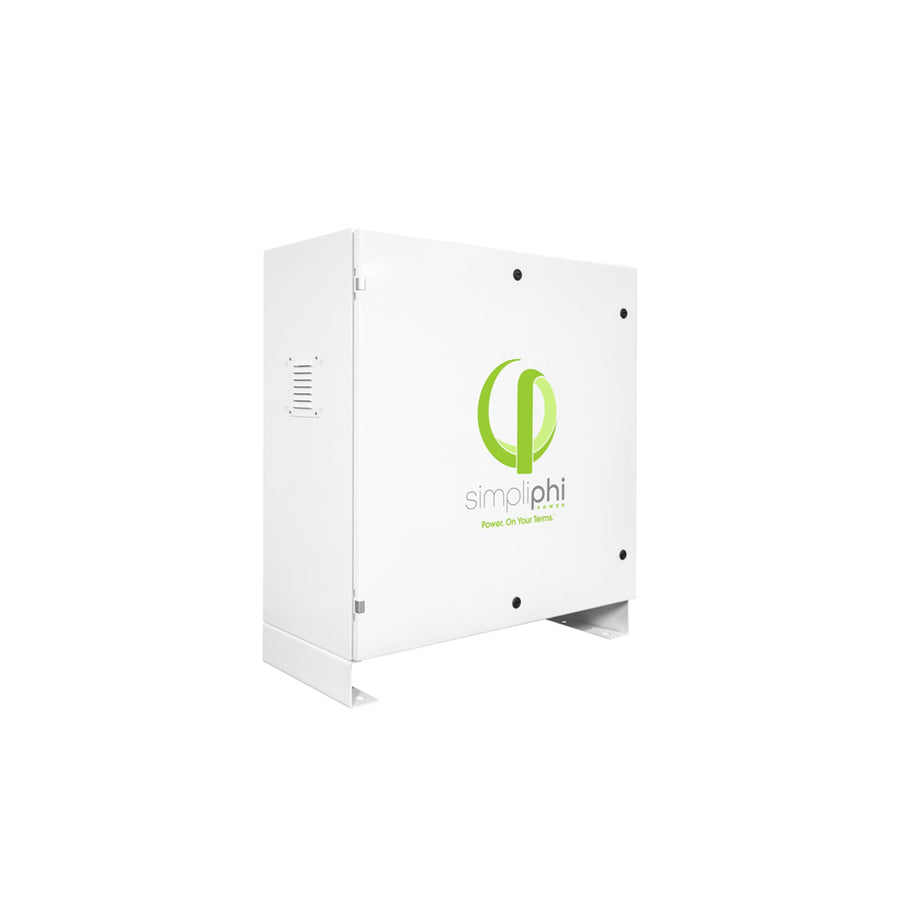

Expand your energy storage by 22.8 kWh with the BOSS.6! This carbon-steel enclosure is a NEMA 3R-rated weather-resistant battery bank housing and wiring solution with built-in shelving. Holding up to 6 PHI batteries, this enclosure can be free-standing or pad mounted.
SimpliPhi Power’s BOSS.6 carbon-steel enclosure is a weather-resistant battery bank housing and wiring solution with built-in shelving. The BOSS consolidates a PHI battery bank paired with any SimpliPhi-compatible balance of system (BoS) equipment and can provide additional battery capacity to a SimpliPhi ExprESS or AccESS fully integrated unit. They include terminal blocks for electrical wiring in parallel, busbar-to-terminal block battery cabling, and terminal block to inverter cabling when ordered. Optional 2 and 3 position battery-to-battery interconnecting busbar sets can be ordered separately depending on quantity of batteries added to the enclosure.
Features:
NEMA 3R-rated, weather-resistant carbon steel enclosures are easily installed and assembled.
Corrosion-resistant fan prevents PHI batteries from reaching maximum 120°F charging temperature.
Energized with cobalt-free, safe and non-toxic PHI batteries that outperform alternative solutions.
Specifications:
Dimensions (W x H x D): 36” W x 36”H (40” w/feet) x 16” D / 91.4 cm W x 91.4 cm H (101.6 cm w/feet) x 40.64 cm D
Weight: 180 lbs. (81.64 kg.) w/o batteries
Enclosure Rating: NEMA 3R outdoor rated
Mounting: Free-standing or Pad-mounted
Knockouts: 3 x Trade Size 1 Knockouts per side (6 total)
Built-In DC Connections: 2 x 5-point Terminal Busbars, 3/8” lugs, 650 ADC
Charging Temperature: 32°F to 120°F (0°C to 49°C)
Maximum Contained Battery Quantity: Six (6) PHI 3.8, 3.5 or 3.4 batteries (each battery measuring 13.5” W x 15.5” H w/terminals x 8” D)
Enclosure Warranty Period: 2 years
