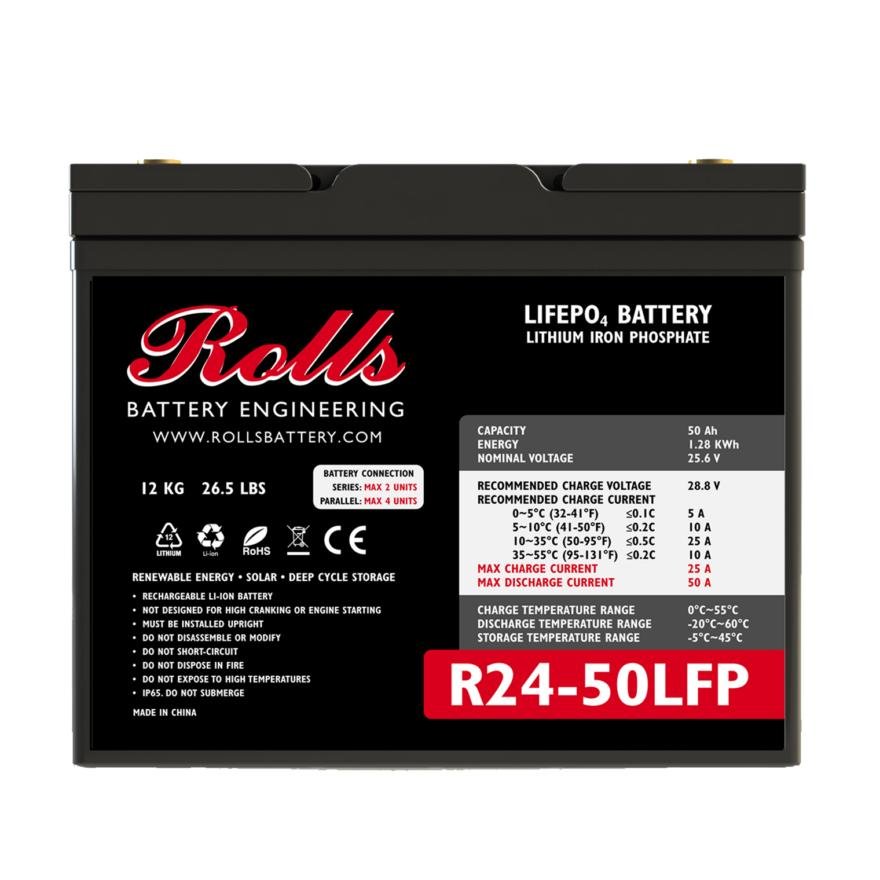

Rolls R24-50LFP 24V 50Ah LIFEPO4 Lithium Battery – Group 24
Original price was: $1,269.29.$888.50Current price is: $888.50.
In stock
$20.00 Core Charge? What is a core charge? A refundable deposit for recycling old parts. Charge is refunded when you return your old part.
| Series | R-Series LFP | Warranty | See Warranty Terms |
|---|---|---|---|
| Volts | 24 | Design | Grp 24 |
| Terminal Type | M8 | ||
| Included Hardware | M8 stainless bolts & washers | ||
| Charge | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Charge Voltage Range | 28.0 – 29.2V | |||||||||
| Recommended End of Discharge Voltage | 24.0 V | |||||||||
| End of Discharge Protection Voltage | 20.0 V | |||||||||
| Recommended Charge Voltage | 28.8 V | |||||||||
| Recommended Charge Current | ||||||||||
| ||||||||||
Charge Mode:
| ||||||||||
| Max Continuous Charge Current | 25 A | |||||||||
| Max Continuous Discharge Current | 50 A | |||||||||
| Surge Current Limit | 400 A (300ms) | |||||||||
| Charge Temperature Range | 0°C~55°C (32~131°F) | |||||||||
| Discharge Temperature Range | -20°~60°C (-4~140°F) | |||||||||
| Storage Temperature Range | -5°~45°C (23~113°F) | |||||||||
| Capacity | |
|---|---|
| Nominal Capacity | 50 AH |
| Total Energy | 1.28 kWh |
| Nominal Voltage | 25.6 V |
Safety
- Cylindrical LiFePO4 cells [ITR26-70/40E 4Ah, 26700] (UL1642)
- IEC62133 (cell), IEC62619(cell), UN38.3 (cell/pack)
- ROHS (cell), CE system certification, IP65 Rating
Design
- Standard-size (BCI) ABS container for easy VRLA replacement
- Fast charge/discharge performance
- Maintenance-free operation
- Bluetooth Connectivity & dedicated IOS & Android App
Battery Management System (BMS)
- Integrated hardware BMS inside
- Independent charge & discharge protection
- Short-Circuit Protection, Over-Voltage Protection, Low-Voltage Protection, Over-Current Protection, Low-Temperature Protection, Over-Temperature Protection
| Specifications | |||
|---|---|---|---|
| Weight | 12 kg | 26.5 lbs | |
| Length | 260 mm | 10.24“ | |
| Width | 170 mm | 6.69“ | |
| Height | 208 mm | 8.19“ | |
| Height Incl. Term. | 211 mm | 8.3“ | |
| Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components. | |||
| Container | ABS | ||
|---|---|---|---|
| Cover | ABS | ||
| Handles | Integrated Top Mount | ||
| Internal BMS Model | 8S50A | ||
| Expected Cycle Life | >6000 @ 80% DOD, >3000 @ 100% DOD | ||
| Series Connection | 2 UNITS MAX (48V) | ||
| Parallel Connection | 4 UNITS MAX (48V) or 6 UNITS MAX (24V) | ||
| Connectivity | Up to 2S4P (in 48V configuration) or 1S6P (in 24V configuration) | ||
Detailed Illustration
| Weight | 26.46 lbs |
|---|---|
| Dimensions | 10.24 × 6.69 × 8.31 in |
| Amp Hour (20 HR) | 50 |
| Battery Type | Lithium Batteries |
| Group Size | 24 |
| Battery Voltage | 24 Volts |
| Part No | 24V 50Ah |
| Brand | |
| Warranty | 3 Year Warranty |
