Specification Details
| Parts per Unit | 5, 50 |
|---|---|
| Features | Copper alloy, tin plated for added conductivity and corrosion resistance, Exceeds SAE standards, J163 and J1811, Made in USA, Permanent, indelible, readable gauge, and polarity stamped on clamp For crimp or solder applications, Precise dimensions to fit battery posts for maximum contact, Quick Connectors are listed by UL® (UL® STD 486A) & CUL , when applied with Quick Cable Quick Crimp tools 4255, 4255M, 4255R & 4255MR (standard and ratchet versions) |
| Application | Crimp, Solder |
| Includes | Fasteners |
| Gauge | 8 |
| Pack Type | Bag |
| Plating Material | Tin |
| Polarity | Universal |
| SAE | J163, J1811 |
| Subject to Prop 65 | No |
| Termination Material | Copper |
| Termination Method | Crimp |
| UL / CSA | Yes |
| Wall Thickness | Heavy Wall |
| Works With | Top Posts |
| Brand | QUICK |
| Color | Silver |
| Color Code | Grey |
| Product Length | 2.37 in |
| Product Width | 1.00 in |

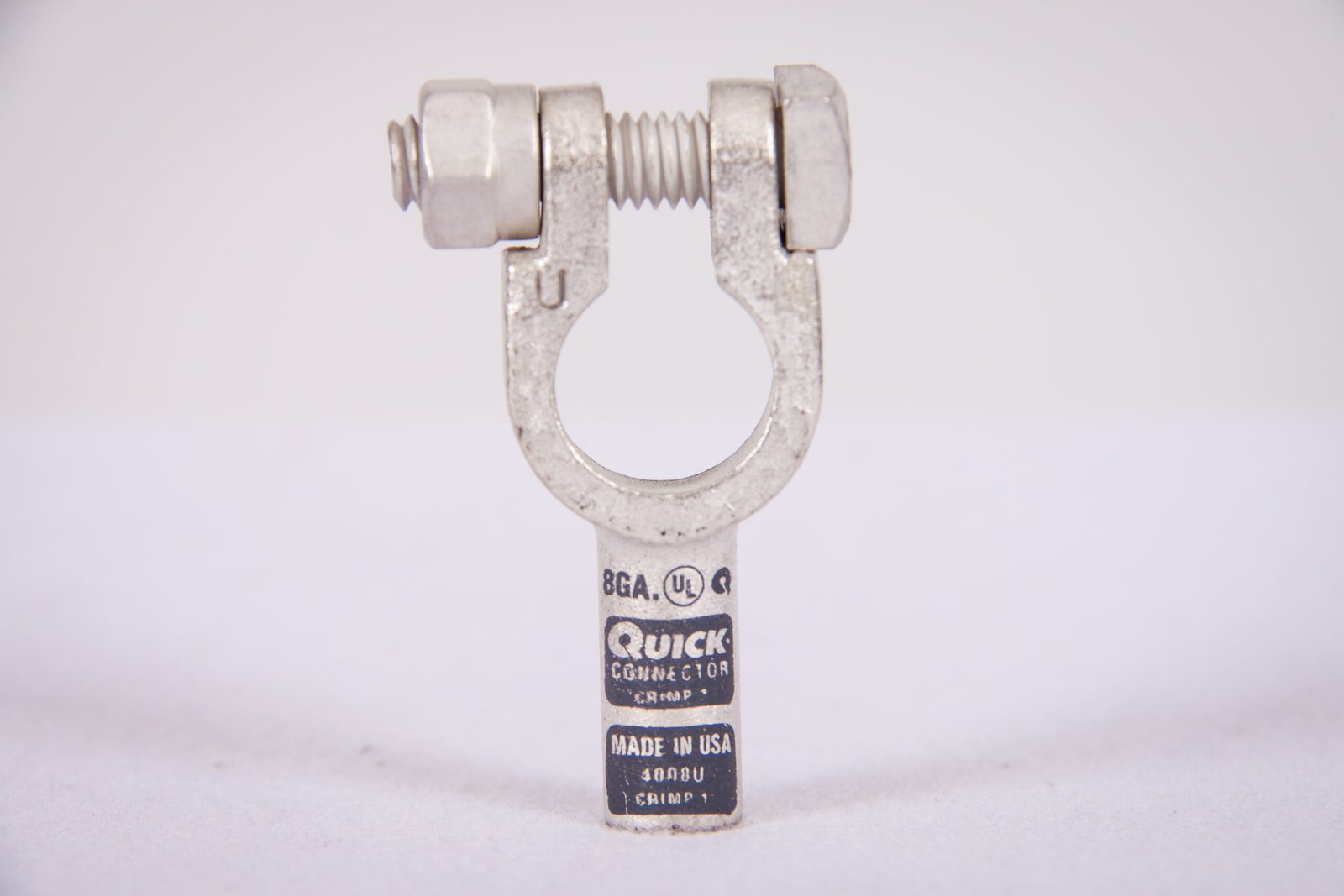

| Product Type | Straight Clamp |
| Production Process | Cast |
| RoHS Compliant | Yes |
| SKU | 4008-005U, 4008-050U, 4008U |
| Product Height | 0.53 in |
| Product Weight | 0.10 lb |
| Tristrip Statement | Strip .91″ (23mm) minimum of insulation from end, fully insert in connector & crimp at two locations. |
| Tristrip Statement / Spanish | Remueva por lo menos 23 mm (0.91 pulgadas) de aislamiento desde un extremo, inserte por completo en el conector y prense en dos lugares. |
| UL Statement | QuickCable UL Listed connectors are for use on stranded copper wire only. |
| Country of Origin | USA |
