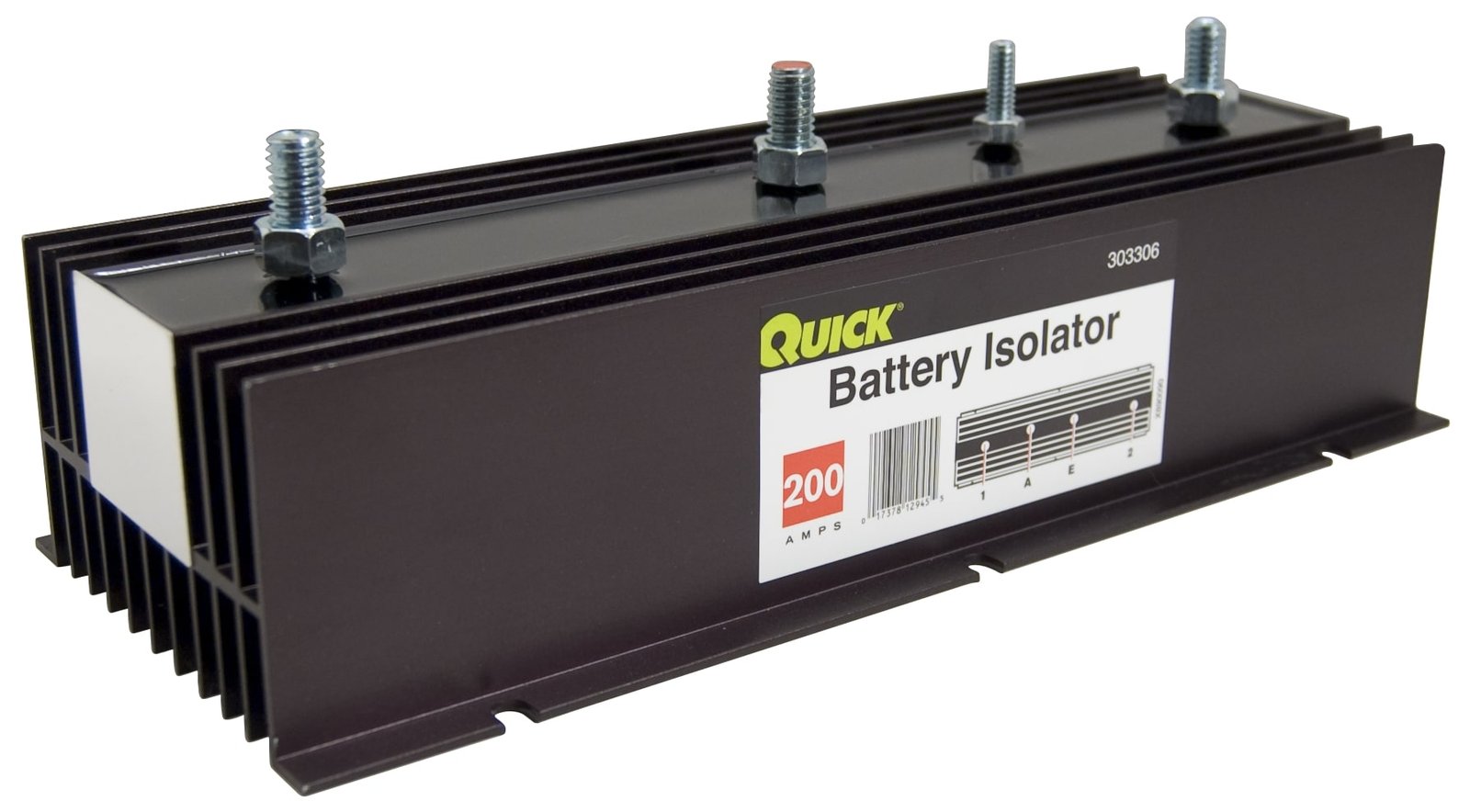

Specification Details
| Parts per Unit | 1 |
|---|---|
| Features | Allows for simultaneous battery charging of a multiple battery system, For lead acid wet cell or gel cell batteries, all batteries must be same type to prevent damage, Isolates batteries to insure power to start your vehicle, Reliable solid-state circuitry, Sealed to protect against oil, gas, salt, water and harsh environments |
| Product Weight | 3.62 lb |
| Thread Length | M10 |
| Color | Black |
| Maximum Voltage | 14.5 V |
| Number of Alternators | 1 |
| Number of Batteries | 2 |
| Number of Studs | 4 |
| Product Length | 11.00 in |
| Product Width | 4.51 in |
| RoHS Compliant | Yes |
| SAE | Yes |
| UL / CSA | No |
| Brand | Not branded |
| Works With | Gel Cell, Lead Acid |
| Amps | 200 A |
| Pack Type | Box |
| Temperature Range (°C) | -40 to 121°C |
| Temperature Range (°F) | -40 to 250°F |
| Termination Material | Anodized Aluminum |
| Subject to Prop 65 | No |
| Application | Automotive, Commercial Applications, Marine, RV |
| SKU | 303306, 303306-001 |
| Isolator Type | Delcotron |
| Product Height | 3.17 in |
| Country of Origin | China |
