Description
Technical Specifications

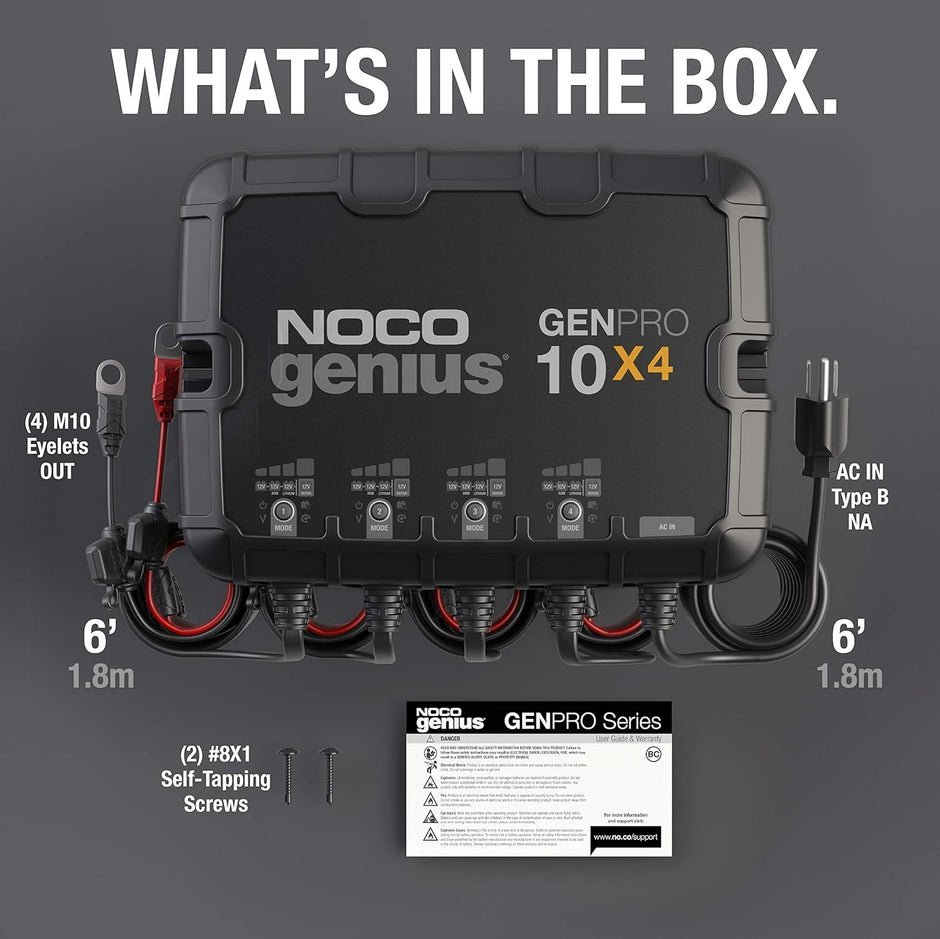

What’s In the Box
- GENPRO10X4 On-Board Battery Charger
- (2) Self-Tapping Screws
- User Guide & Warranty Information
Operating Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 50° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95% Non-Condensing
Charging
Current: 10 Amps DC x 4 Banks
Voltages: 12V
Chemistry: Lead-Acid and Lithium
Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
Battery Capacity Range: Up to 230 Amp-Hours
Maintenance: All Battery Sizes
Power
Consumption: 150 Watts (Max) X 4 Banks
Safety
Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes
Size
Height: 8.11 Inches (206 mm)
Width: 10.51 Inches (267 mm)
Depth: 2.83 Inches (72 mm)
Weight: 16.98 Pounds (7.71 kg)
Cord Management
DC Cable + Eyelet Length: 72 Inches (182cm)
DC Cable Size: 14 AWG
DC Fuse Size: 15 AMP MINI ® Blade Fuse
AC Cable Length: 72 Inches (182cm)
AC Cable Size: 18 AWG
Oil, gas, grease, water, chemical, UV, abrasion resistant

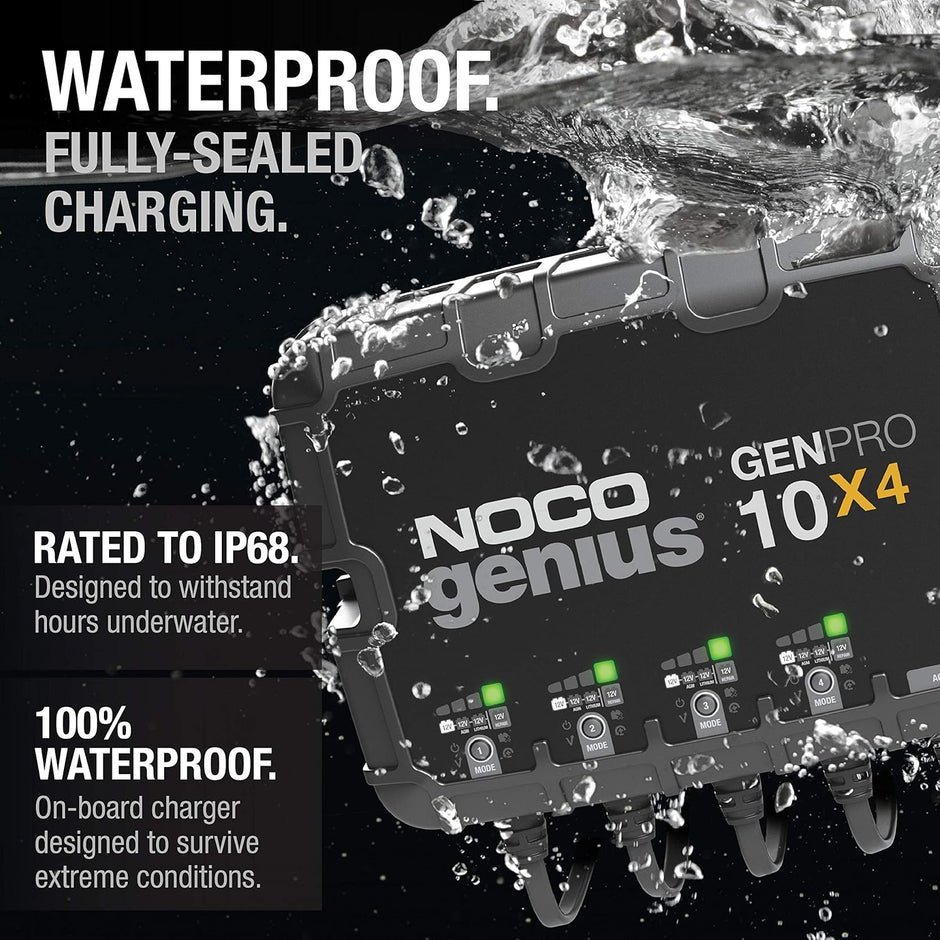

IP Rating
IP68
Limited Warranty
3-Year Limited Warranty
