Technical Specifications
What’s In The Box

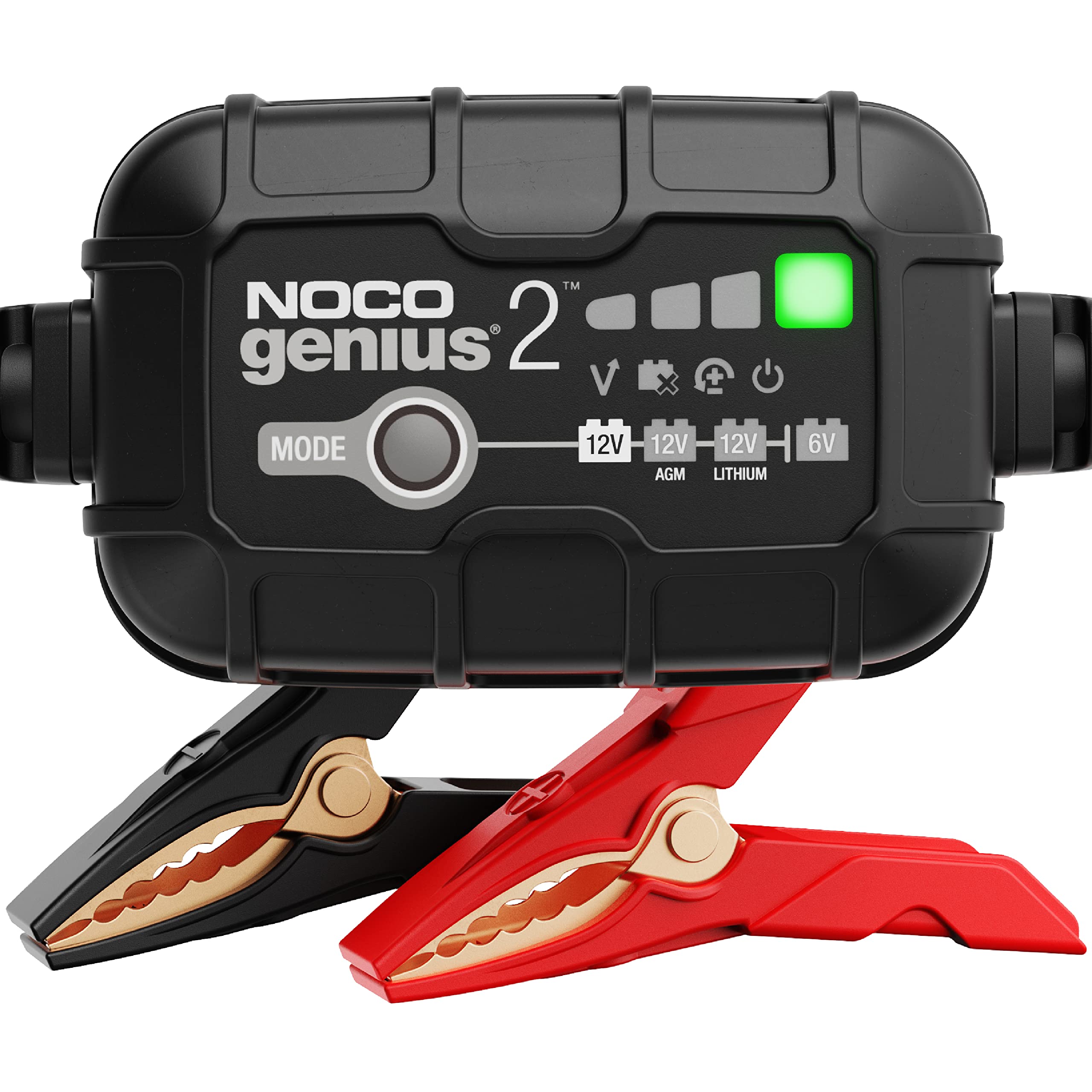

- GENIUS2 Battery Charger w/ Interchangeable Connector
- Clamps w/ Integrated Eyelets (M6)
- Mounting Bracket w/ Strap
- (2) Self-Tapping Screws
- User Guide & Warranty Information
Operating Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 40° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95% Non-Condensing
Charging
Current: 2 Amps DC
Voltages: 6V, 12V
Chemistry: Lead-Acid and Lithium
Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
Capacity Range: Up to 40 Amp-Hours
Maintenance: All Battery Sizes
Power
Consumption: 30 Watts (Max)
Efficiency: 87% (120VAC / 230VAC)
Safety
Short-Circuit: Yes
Open-Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark-Proof: Yes
Reverse Polarity: Yes
Product Size
Height: 2.40 Inches (61.0 mm)
Width: 3.70 Inches (94.0 mm)
Depth: 1.69 Inches (43.0 mm)
Weight: 1.1 lbs (0.5 kg)
Cord Management
DC Cable + Clamp Length: 77 Inches (195cm)
DC Cable Size: 18 AWG
DC Fuse Size: 4 AMP MINI ® Blade Fuse
AC Cable Length: 71.7 Inches (182cm)
AC Cable Size: 18 AWG
Oil, gas, grease, water, chemical, UV, abrasion resistant
IP Rating
IP65
Limited Warranty
3-Year Limited Warranty
