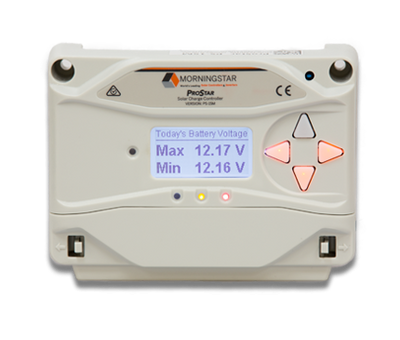

Morningstar PS-30M Charge Controller 30A 12-24V
Morningstar PS-30M Charge Controller 30A 12-24V is commonly used for small to medium off grid and other battery systems, such as backup power supplies. It can be used for any 12 or 24 volt battery system. It will handle up to 30 amps from the solar panels – about 500 watts of panel at 12 volts, 1000 watts at 24 volts. Morningstar’s series switching provides many advantages compared to shunt controllers. Series regulation reduces FET heating and lowers voltage stress on the power FET’s. A series configuration also improves protection against lightning surges and reduces switching noise. The series design improves charging accuracy. In PWM, series switching becomes self-correcting for temperature and system voltage drops. May be paralleled up to 300 amps.
Morningstar PS-30M Charge Controller 30A 12-24V is the world’s leading mid-range solar controller for both professional and consumer applications. This third generation ProStar (PS-30) provides the following:
Adds new features and protections using highly advanced technology
Provides longer battery life and improved system performance
Sets new standards for reliability and self-diagnostics
Morningstar PS-30M Charge Controller 30A 12-24V Features
Standard
Versions available: 15 or 30 amp 12 / 24 or 48 volt negative or positive ground
Estimated 15 year life
PWM series battery charging (not shunt)
3-position battery select: gel, sealed or flooded
Very accurate control and measurement
Jumper to eliminate telecom noise
Parallel for up to 300 amps
Temperature compensation
Tropicalization: conformal coating, stainless steel fasteners & anodized aluminum heat sink
No switching or measurement in the grounded leg
100% solid state
Very low voltage drops
Current compensated low voltage disconnect (LVD)
LEDs indicate system status and various faults
Capable of 25% overloads
Remote battery voltage sense terminals
Specifications
PS-15 PS-30 PS15M-48V
Rated Solar Current 15 Amps 30 Amps 15 Amps
Rated Load Current 15A 30A 15A
System Voltage 12/24V 12/24V 48V
Temp. Comp. (mV/°C)* – 30mV – 60mV – 120mV
Accuracy 40mV 60mV 80mV
Min. voltage to operate 8V 8V 15V
Self-consumption 22mA 25mA 28mA
LVD current coefficient** – 20mV – 40mV – 80mV
Charge algorithm PWM, constant voltage
Operating temperature – 40°C to + 60°C
