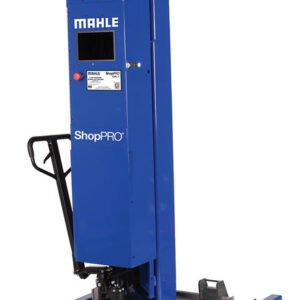

The Mahle CML-9×4 38 Ton Commercial Vehicle Mobile Column Lift Set is a robust and reliable lifting solution for commercial vehicles. Designed for easy operation and durability, this lift set allows for efficient and safe lifting of large vehicles such as trucks and buses. Its 38-ton capacity per column ensures it can handle heavy-duty applications in busy workshops or maintenance facilities. With a total of four mobile columns, this lift set is perfect for those needing flexibility and powerful performance.
Ideal for commercial vehicle service, the Mahle CML-9×4 lift provides easy maneuverability and safety features that make it an essential tool for any automotive workshop or fleet maintenance center.
- Heavy Duty Lifting Capacity: 14,000 lb (CML-7) and 19,000 lb (CML-9) per column capacity options. Wide base available in 19,000 lb capacity (CML-9W).
- Intelligent: Patented wireless smart lift technology.
- Simple: Tablet-based touch screen with onboard manuals, videos, and internet.
- Broad Application: Heavy duty through light-duty vehicles.
- Fully Adjustable Carriage: 12″ forks support wheel diameter from 5″ to 24.5″
- Patent Pending: Down-stop visual safety system.
- Adjustable lift height: 69″ (1753 mm)
Specifications:
- Certification: ALI Certified
- Capacity (Each): 19,000 lb (8,165 kg)
- Max. Hydraulic Operating Pressure: 2,600 psi (17.9 MPa)
- Min/Max Wheel Diameter: 5 in / 24.5 in (127 mm / 622 mm)
- Min (2)/Max (4) Lift Height 32 in / 69 in (813 mm / 1,753 mm)
- Lift Speed (Max Load): 60 in/min (1,524 mm/min)
- Weight: 1,510 lb (685 kg)
- Height: 88.5 in (2,248 mm)
- Height at Full Lift: (157.13 in (3,991 mm)
- Operating Peak Power: 4 HP (3 kW)
- Operating Voltage: 24 VDC Nominal
- Charger Voltage Required: 70-130 VAC @50-60 Hz
