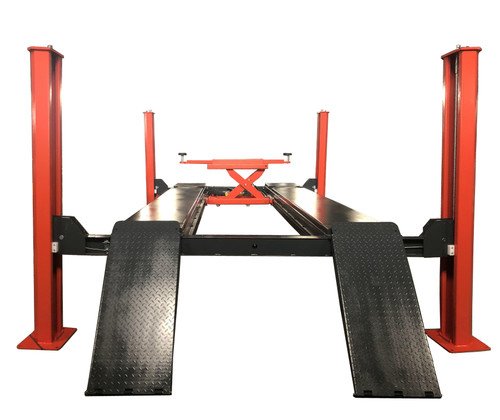

Katool USA Heavy Duty 4-Post Alignment Lift 15,000lbs (KT-4H150)

Katool USA Heavy Duty 4-Post Alignment Lift 15,000lbs (KT-4H150) is designed to handle heavy-duty lifting needs with ease. With a lifting capacity of 15,000lbs, this CE Approved and Certified lift meets the highest safety standards, ensuring reliable performance and durability.

The lift features spring-loaded safety locks that automatically engage continuously as the lift is raised, with a secondary lock system to act as a slack-cable device. Adjustable height locking positions provide versatility, and a convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.

• Specifications and Dimensions
  • Lifting Capacity: 15,000lbs (4990KG)
  • Max. Lifting Height: 92.52″ / 2350mm
  • Lifting Time: 95s Up / 55s Down
  • Height of Posts: 85.63″ / 2175mm
  • Width Overall: 136.06″ / 3456mm
  • Length Overall: 245.31″ / 6231mm (with Ramps)
  • Inside Columns: 118.11″ / 3000mm
  • Min. Runway Height: 9.3″ / 236mm
  • Motor: 220VAC/60HZ/1PH
  • Net Weight: 4850lbs / 2200KG



• Key Features and Benefits
  • Heavy-duty 15,000lbs lifting capacity
  • CE Approved and Certified for safety and reliability
  • Spring-loaded safety locks with secondary lock system
  • Adjustable height locking positions
  • Push-button pneumatic safety lock control
  • Non-skid diamond texture ramps and non-slip coated runways
  • Includes one 6,000lbs rolling jack
  • Top-quality hydraulic system and motor
  • Optional voltage: 220V/60HZ/1PH or 110V/60HZ/1PH
