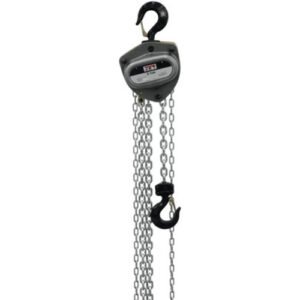

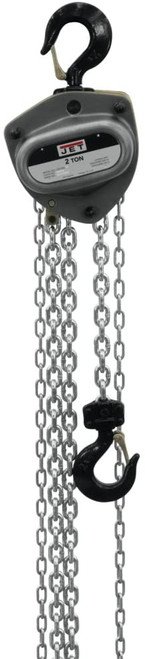

Jet L100-200WO-80 2 Ton 80″ Lift with Overload Protection (206180)

The Jet L100-200WO-80 2 Ton 80″ Lift with Overload Protection (206180) is a heavy-duty hand chain hoist designed to meet the demands of challenging industrial environments. With a 2-ton lifting capacity and an 80-foot lift, this hoist combines versatility, power, and advanced safety features for reliable performance and operator safety.

KEY FEATURES AND BENEFITS:

• Safety First: The Jet L100 series prioritizes safety with features like overload protection, a Weston-style double ratchet pawl brake, and industrial-rated 360° rotating hooks that indicate overload.
• Built to Last: Constructed with durable steel and heat-treated components, the Jet 206180 is designed for longevity. Its grade 100 load chain is 20% stronger than standard grade 80 chains.
• User-Friendly: The hoist’s compact design and 360° rotating hooks make it easy to maneuver and operate in tight spaces.

SPECIFICATIONS:

• Model: Jet 206180 L100-200WO-80
• Capacity: 2 Tons (4,000 lbs)
• Lift: 80 Feet
• Chain: Grade 100, corrosion-resistant plated
• Overload Protection: Yes (slip clutch style, resettable)
• Brake System: Weston-style double ratchet pawl brake
• Hooks: Industrial-rated alloy steel, 360° rotating
• Construction: All-steel, impact-resistant
• Certifications: ANSI/ASME B30.16 and HST-2 Standards

HOW TO USE:

1. Inspection: Before each use, inspect the hoist for any damage or wear. Ensure all components are in good working order.
2. Rigging: Attach the hoist to a secure support using the appropriate rigging hardware. Ensure the load is centered and balanced.
3. Lifting: Pull the hand chain in the direction indicated to raise the load. Use a slow, steady motion to avoid sudden movements.
4. Lowering: Pull the hand chain in the opposite direction to lower the load. Control the descent speed to prevent the load from dropping too quickly.
5. Overload Protection: If the hoist is overloaded, the slip clutch will engage, preventing further lifting. Reset the overload protection before continuing use.

BENEFITS OF USING THE Jet L100-200WO-80 2 Ton 80″ Lift with Overload Protection (206180):

• Enhanced safety during lifting operations
• Reduced risk of equipment damage due to overloading
• Increased productivity with efficient lifting
• Long-lasting performance due to durable construction

FEATURES:

• Single-piece fused brake system (lifetime warranty)
• Double-sealed ball bearings for smooth operation
• Heat-treated load plates for durability
• Cast-steel safety latches
• Lightweight and compact design
