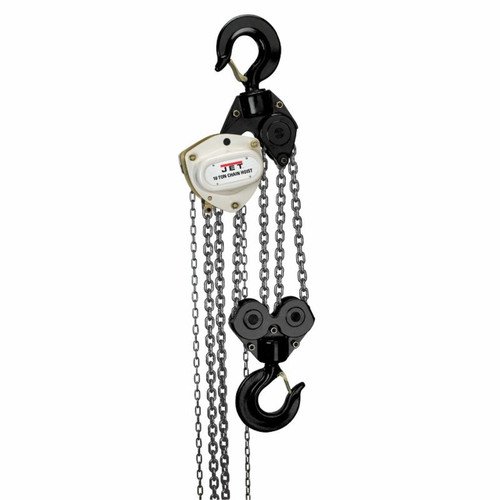

Jet L100-1000WO-30 10T Hoist 30ft Lift w/Overload Protection (209130)

Jet L100-1000WO-30 10T Hoist 30ft Lift w/Overload Protection (209130) is built for demanding industrial applications. This heavy-duty hoist offers exceptional lifting capacity (22,000 lbs) and a 30-foot lift height, making it ideal for various material handling tasks. The L-100 is known for its rugged construction, featuring all-steel components with a durable powder coat finish for lasting performance.

KEY FEATURES AND BENEFITS:

• Superior Durability: Solid steel construction ensures maximum strength and reliability.
• Overload Protection: Slip-clutch design safeguards against lifting loads exceeding capacity.
• Efficient Lifting: Triple spur gear system provides smooth operation with minimal effort.
• Enhanced Safety: Drop-forged alloy steel safety hooks with wide throats for easy rigging and overload indication. Patented fused disc brake offers extended life and easy replacement.
• Compact Design: Lightweight and low headroom compatible for use in confined spaces.
• Extended Service Life: Heat-treated load plates, case-hardened internal parts, and zinc-coated components resist wear and corrosion.

SPECIFICATIONS:

• Capacity: 10 ton (22,046 lbs)
• Lift Height: 30 ft
• Load Chain Diameter: 9 mm
• Hand Chain Pull to Lift: 79 lbs
• Headroom: 29-7/8″
• Standards: OSHA, ANSI/ASME B30.16, HST-2 compliant

HOW TO USE:

1. Secure the hoist: Secure the hoist to a stable overhead mounting point with a rated capacity exceeding the intended load.
2. Inspect the hoist: Inspect the hoist for any damage or malfunctions before use. Ensure the safety latches are properly engaged on the hooks.
3. Grip the hand chain: Grip the hand chain firmly and pull steadily to raise the load. The Weston-style double ratchet pawl brake automatically engages when you stop pulling, holding the load securely in place.
4. Lower the load: To lower the load, slowly pull the hand chain in the opposite direction. The controlled lowering mechanism allows for precise positioning.
5. Use caution: Never exceed the rated capacity of the hoist or lift loads at an angle.

BENEFITS OF USING Jet L100-1000WO-30 10T Hoist 30ft Lift w/Overload Protection (209130):

• Safe and Reliable Lifting: Durable construction, overload protection, and certified compliance ensure safe operation.
• Efficient Material Handling: High lifting capacity and smooth operation expedite lifting tasks.
• Versatile Applications: Ideal for various industrial settings due to its compact design and durability.
• Reduced Maintenance: Sealed ball bearings and fused disc brake minimize maintenance requirements.
• Long Service Life: Heat-treated components and corrosion-resistant finish ensure lasting performance.

FEATURES:

• All-steel construction with powder coat finish
• Slip-clutch overload protection
• Triple spur gear system for efficient lifting
• Heat-treated and hardened grade 100 load chain
• Smooth hand chain cover to prevent jamming
• 360° rotating safety hooks with wide throats
• Patented fused disc brake for extended life
• Sealed ball bearing supported load sheave
• Double-supported drive pinion
• Heavy-duty cast safety latches
• Factory tested and certified
• OSHA, ANSI/ASME B30.16, HST-2 compliant
