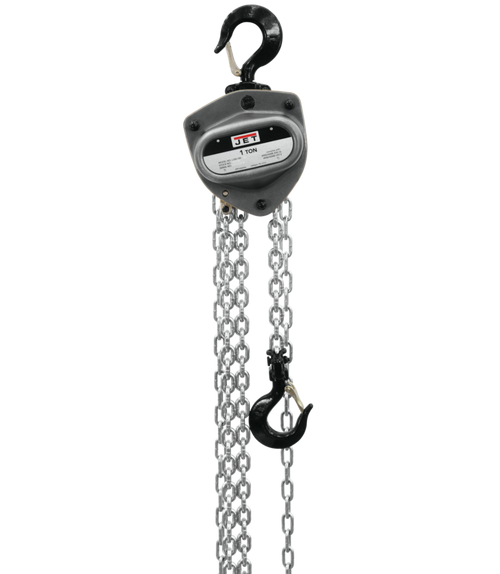

Jet L-100-100WO-10 1T Hoist w/ 10′ Lift & Overload Protection (102100)

The Jet L-100-100WO-10 1T Hoist w/ 10′ Lift & Overload Protection (102100) is a 1-ton capacity hand chain hoist designed for heavy-duty industrial applications. Built with robust all-steel construction and a durable powder coat finish, this hoist offers superior strength and longevity. Its 10-foot lift capacity and compact design make it ideal for various lifting tasks in tight spaces or areas with low headroom. The hoist’s overload protection, high-grade load chain, and comprehensive safety features ensure secure and efficient operation.

KEY FEATURES AND BENEFITS

• 1-Ton Lifting Capacity: Handles heavy loads up to 2,205 pounds.
• 10-Foot Lift: Provides ample lifting height for versatile applications.
• Overload Protection: Slip clutch design prevents lifting beyond rated capacity, enhancing safety.
• Durable Construction: All-steel body and powder coat finish ensure longevity in demanding environments.
• Safety Features:
  • Patented fused brake disc for reliable braking and reduced maintenance.
  • Weston-style dual pawl brake system for added load security.
  • Drop forged alloy steel hooks with 360-degree rotation for easy rigging.
  • Cast steel safety latches provide extra security.
• High-Efficiency Operation: Triple spur gears and sealed ball bearings ensure smooth and efficient lifting with minimal effort.
• Grade 100 Load Chain: Heat-treated, premium load chain offers 20% more strength than standard grade 80 chains.

SPECIFICATIONS

• Model Number: 102100
• Capacity: 1 Ton (2,205 lbs)
• Lift: 10 feet
• Headroom: 11-5/8 inches
• Load Chain: 6.3 mm diameter, grade 100
• Hand Chain Pull: 64 lbs to lift capacity
• Weight: 27 lbs

HOW TO USE

1. Inspection: Before each use, inspect the hoist for any damage or wear. Ensure all components are in good working order.
2. Secure Mounting: Attach the hoist to a secure support structure using appropriate rigging hardware.
3. Load Attachment: Securely attach the load to the hoist hook, ensuring it is balanced and within the rated capacity.
4. Lifting: Pull the hand chain in a smooth, controlled manner to raise the load. Use the other hand to guide the load as needed.
5. Lowering: Pull the other side of the hand chain to slowly lower the load.
6. Storage: After use, clean and store the hoist in a dry location.

BENEFITS OF USING THE JET L-100-100WO-10 1T HOIST W/ 10′ LIFT & OVERLOAD PROTECTION (102100)

• Enhanced Safety: Overload protection and multiple safety features minimize the risk of accidents.
• Improved Productivity: Efficient lifting mechanism reduces effort and time required for lifting tasks.
• Versatility: Suitable for a wide range of industrial applications.
• Durability: High-quality construction ensures long-lasting performance in harsh environments.
• Reliability: Backed by a lifetime warranty on the fused brake design.

FEATURES

• Compact Design: Ideal for use in confined spaces.
• Lightweight: Easy to transport and maneuver.
• Low Maintenance: Patented brake design requires minimal upkeep.
• Compliance: Meets or exceeds OSHA, ANSI/ASME B30.16, and HST-2 standards.
