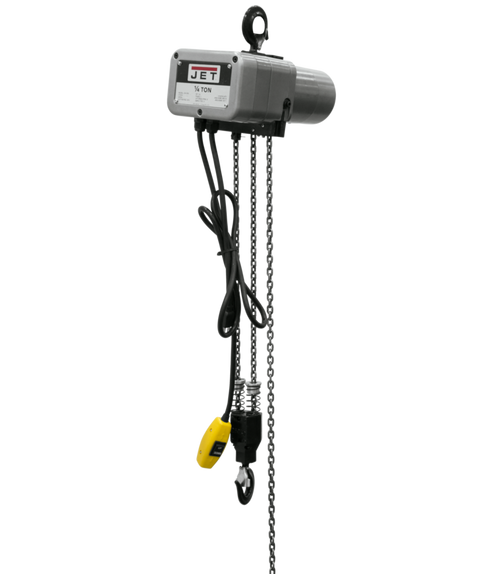

Jet JSH-550-10 115V 1/4 Ton Electric Hoist w/10′ Lift (110110)

The Jet JSH-550-10 115V 1/4 Ton Electric Hoist w/10′ Lift (110110) is a compact and reliable electric hoist designed for efficient lifting tasks in commercial and industrial settings. Built with safety and durability in mind, this hoist offers a 1/4 ton capacity and a 10-foot lift height, making it ideal for various applications.

KEY FEATURES AND BENEFITS

• Safe Operation: Equipped with overload protection, thermal overload protection, and a magnetic disk brake to ensure user safety.
• Durable Construction: Features a die-cast aluminum housing and a sealed gear train for long-lasting performance.
• Easy to Use: Simple controls and lightweight design for convenient operation.
• Efficient Lifting: Offers a lifting speed of 8 feet per minute for increased productivity.
• Versatile Applications: Suitable for a wide range of light-duty lifting tasks in commercial and industrial environments.

SPECIFICATIONS

• Capacity: 1/4 ton (500 lbs)
• Lift Height: 10 feet
• Power Supply: 115V, 1-phase
• Motor: 1/6 HP
• Duty Cycle: H3 (25% duty cycle)
• Lifting Speed: 8 feet per minute
• Load Chain: Grade 80
• Dimensions: Headroom 17-1/10 inches, Overall width 6.81 inches
• Weight: 34.6 lbs

HOW TO USE

1. Inspect the Hoist: Before each use, check for any signs of damage or wear.
2. Secure the Load: Ensure the load is properly secured to the hoist hook using the provided load chain.
3. Connect Power: Plug the hoist into a grounded 115V outlet.
4. Operate Controls: Use the pushbutton control pendant to raise or lower the load.
5. Monitor Load: Continuously observe the load during lifting and lowering.
6. Lower the Load: Gently lower the load to the desired position.
7. Disconnect Power: Unplug the hoist after use.

BENEFITS OF USING JET JSH-550-10 115V 1/4 TON ELECTRIC HOIST W/10′ LIFT (110110)

• Increased Efficiency: Quickly and safely lift heavy objects, improving productivity.
• Reduced Labor Costs: Minimize manual handling and potential injuries.
• Improved Safety: Built-in safety features protect both operators and equipment.
• Versatile Applications: Handles a wide range of lifting tasks in various industries.
• Easy Maintenance: Sealed gear train requires minimal upkeep.

FEATURES

• Aluminum housing
• Load tested to 125% of capacity
• Grade 80 load chain
• Heat treated gears
• Upper and lower limit switches
• Magnetic disk brake
• Overload protection
• Sealed gear train
• Thermal overload protection
