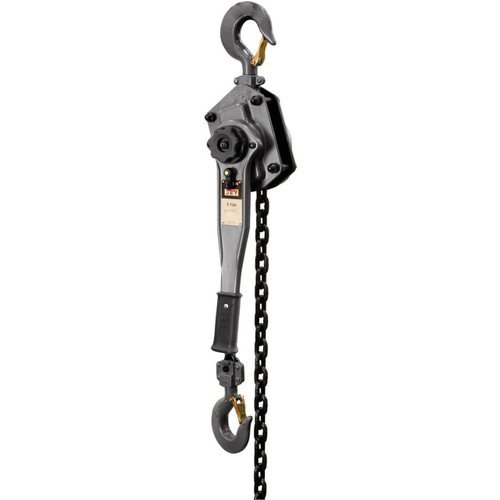

Jet JLP-300A-30 3-Ton Lever Hoist w/ 30′ Lift (287505)

The Jet JLP-300A-30 3-Ton Lever Hoist w/ 30′ Lift (287505) is a robust lifting tool designed for heavy-duty applications. Built with durability and safety in mind, it offers a reliable solution for lifting up to 3 tons with a maximum lift height of 30 feet.

KEY FEATURES AND BENEFITS:

• Powerful and Efficient: Handles loads up to 3 tons with ease.
• Safe Operation: Equipped with safety overload clutch and latching hooks.
• Durable Construction: All-steel build for long-lasting performance.
• Compact Design: Ideal for low headroom areas.
• Easy to Use: Smooth operation with needle bearing design.

SPECIFICATIONS:

• Capacity: 3 tons (6000 lbs)
• Lift Height: 30 feet
• Headroom: 18.80 inches
• Load Chain: Grade 80
• Construction: All steel
• Safety Features: Overload clutch, latching hooks, cast steel safety latches
• Compliance: ANSI/ASME B30.21 and HST-3

HOW TO USE:

1. Inspect the Hoist: Check for any damage or wear before use.
2. Attach the Load: Securely hook the load to the hoist’s lower hook.
3. Position the Hoist: Ensure the hoist is securely mounted and aligned.
4. Operate the Lever: Pull down on the lever to lift the load.
5. Lower the Load: Release the lever to lower the load.
6. Release the Load: Carefully detach the load from the hoist.

BENEFITS OF USING JET JLP-300A-30 3-TON LEVER HOIST W/ 30′ LIFT (287505):

• Increased Efficiency: In lifting tasks.
• Improved Job Site Safety: With overload protection.
• Durable Construction: For long-term use.
• Versatile: For various lifting applications.
• Compact Design: For easy storage and handling.

FEATURES:

• Industrial-rated alloy steel hooks for strength and durability
• Weston-style, double pawl brake for secure load holding
• Needle bearing design for smooth operation
• Impact-resistant all-steel construction
• Load tested to 125% of capacity
