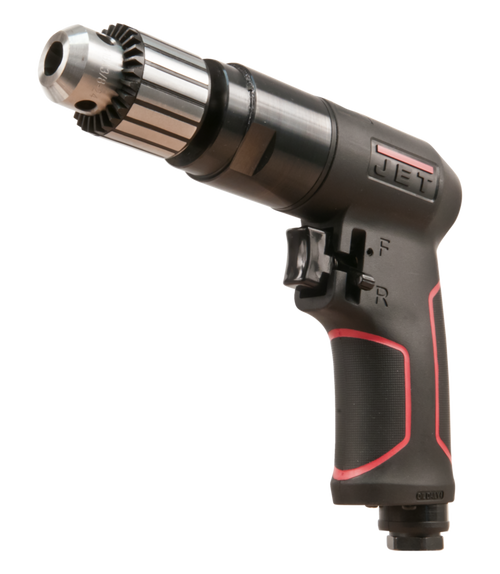

Jet JAT-620 R12 1800 RPM 3/8-Inch Pneumatic Reversible Drill (505620)

Jet JAT-620 R12 1800 RPM 3/8-Inch Pneumatic Reversible Drill (505620) is a robust, 3/8 inch reversible air drill engineered for demanding industrial applications. Designed to withstand the rigors of 12-hour workdays, this tool is part of the reliable R12 series.

KEY FEATURES AND BENEFITS:

• Industrial Jacobs Keyed Chuck: Efficiently transfers torque for powerful performance.
• Variable-Speed Trigger: Provides precise control over drilling and driving speed.
• Composite Housing: Combines durability with lightweight design for reduced user fatigue.
• Sealed Ball Bearing Construction: Protects against contaminants and ensures smooth operation.
• Side-Mounted Forward/Reverse Switch: Offers quick and easy direction changes.

SPECIFICATIONS:

• Chuck Size: 3/8 inch
• Free Speed: 1800 RPM
• Horsepower: 1/2 HP
• Spindle Thread: 3/8″-24
• Air Consumption: 4 CFM
• Overall Length: 7-5/8 inch
• Noise Level: 90 dB
• Vibration Value: 0.4 m/s²
• Air Inlet: 1/4 NPT
• Air Hose: 3/8 inch ID
• Air Pressure: 90 PSI

HOW TO USE:

• Connect the Air Hose: Connect the air hose to the 1/4 inch NPT air inlet of the drill.
• Secure the Bit: Ensure the desired bit is securely clamped in the 3/8 inch industrial Jacobs keyed chuck.
• Adjust Speed: Use the variable-speed trigger to adjust the speed as needed.
• Start Drilling or Driving: Squeeze the trigger to begin drilling or driving.
• Reverse Direction: Use the side-mounted forward/reverse switch to change direction.
• After Use: Disconnect the air hose and clean the drill.

BENEFITS OF USING Jet JAT-620 R12 1800 RPM 3/8-Inch Pneumatic Reversible Drill (505620):

• Increased Efficiency: The powerful motor and variable speed control allow for faster and more precise work.
• Improved Durability: The sealed ball bearing design and composite housing extend the tool’s lifespan.
• Enhanced Comfort: The lightweight design reduces user fatigue during extended use.
• Versatile Applications: Suitable for a wide range of tasks in metal fabrication, woodworking, and general maintenance.

FEATURES:

• Reversible Design for Drilling and Driving
• 1800 RPM for Efficient Material Removal
• Durable Composite Housing for Protection
• Side-Mounted Forward/Reverse Switch for Convenience
• Variable-Speed Trigger for Precise Control
• Industrial Jacobs Keyed Chuck for Optimal Torque Transfer
• Sealed Ball Bearing Construction for Longevity
