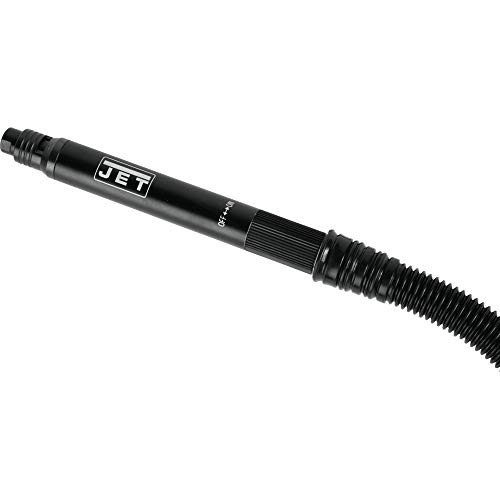

Jet JAT-410 Model 1/8-Inch Pneumatic Micro Die Grinder (505410)

The Jet JAT-410 Model 1/8-Inch Pneumatic Micro Die Grinder (505410) is a versatile pneumatic tool designed for precision work. Its compact size and lightweight design make it easy to handle, while its powerful 70,000 RPM motor delivers efficient material removal. Ideal for a variety of applications, including cutting, grinding, polishing, and deburring.

KEY FEATURES AND BENEFITS:

• Powerful and Efficient: 70,000 RPM motor for fast material removal.
• Precise Control: Variable-speed throttle for customized performance.
• Comfortable Operation: Lightweight design reduces hand fatigue.
• Durable and Long-Lasting: Kevlar rotor vanes extend tool life.
• Quiet Operation: Low noise level for a comfortable work environment.
• Easy Accessory Changes: Includes two 9mm wrenches for quick adjustments.

SPECIFICATIONS:

• Speed: Up to 70,000 RPM
• Collet size: 1/8 inch
• Air consumption: 5.5 SCFM under load
• Air inlet: 1/4 inch NPT
• Required air pressure: 90 PSI
• Vibration value: 1.10 m/s²
• Sound power: 86.0 dB(A)
• Sound pressure: 81 dB(A)

HOW TO USE:

1. Safety First: Always wear appropriate safety gear, including eye protection and hearing protection.
2. Connect Air Hose: Securely connect the air hose to the 1/4 inch NPT air inlet.
3. Adjust Speed: Set the desired speed using the variable-speed throttle.
4. Choose Accessory: Select the appropriate accessory for your task and securely tighten it into the collet using the included wrenches.
5. Start Grinding: Turn on the air compressor and begin grinding, polishing, or cutting.
6. Maintain Control: Maintain a firm grip on the tool and use steady, controlled movements.
7. Regular Maintenance: Clean the tool regularly and replace worn parts as needed.

BENEFITS OF USING Jet JAT-410 Model 1/8-Inch Pneumatic Micro Die Grinder (505410):

• Increased productivity due to efficient material removal.
• Improved accuracy and precision in various applications.
• Reduced user fatigue thanks to the lightweight design.
• Longer tool life due to durable construction and Kevlar rotor vanes.
• Quieter operation for a more comfortable work environment.
• Versatile tool for a wide range of tasks.

FEATURES:

• Powerful 70,000 RPM motor
• Variable-speed throttle
• Lightweight steel housing
• Kevlar rotor vanes
• Low noise level (81 dB)
• Includes two 9mm wrenches
• 1/8 inch collet size
• 1/4 inch NPT air inlet
