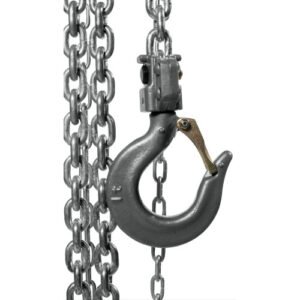

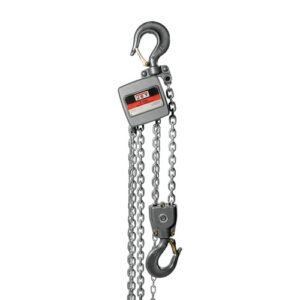

Jet AL100-150-20 1.5-Ton Hand Chain Hoist w/ 20′ Lift (133123)

Jet AL100-150-20 1.5-Ton Hand Chain Hoist w/ 20′ Lift (133123) is a robust manual chain hoist designed for efficient and safe lifting of heavy loads. This versatile tool is ideal for various applications in industrial, construction, and maintenance settings.

KEY FEATURES AND BENEFITS:

• Powerful Lifting Capacity: With a lifting capacity of 3300 lbs (1-1/2 tons), this chain hoist handles heavy loads with ease.
• Durable Construction: The sealed housing protects internal components from harsh environments, ensuring long-lasting performance.
• Safety First: Equipped with cast steel safety latches and a dual pawl Weston style brake, this hoist prioritizes operator safety.
• Smooth Operation: The extra-large hand chain opening allows for effortless pulling, reducing user fatigue.
• Reliable Performance: Grade 100 load chain and a patented fused brake design guarantee reliable and consistent operation.

SPECIFICATIONS:

• Capacity: 3300 lbs (1-1/2 tons)
• Lift: 20 ft
• Load Chain Dimensions: 7.1 x 19.9 mm
• Weight: 43.08 lbs
• Headroom: 13-13/16 in
• Hand Chain to Lift Load 1 ft: 90
• Lbs. of Pull to Lift Capacity: 72.0000
• Gross Weight: 43.08 lbs

HOW TO USE:

1. Inspect the hoist: Before use, carefully examine the chain hoist for any signs of damage or wear.
2. Attach the load: Securely hook the load chain to the lifting point of the load.
3. Operate the hand chain: Pull the hand chain to lift the load. The hoist will gradually raise the load.
4. Lower the load: To lower the load, gradually release the hand chain. The brake will engage to control the descent.
5. Release the load: Once the load is at the desired height, carefully detach the load chain.

BENEFITS OF USING Jet AL100-150-20 1.5-Ton Hand Chain Hoist w/ 20′ Lift (133123):

• Increased efficiency in lifting tasks
• Improved safety through reliable braking and safety features
• Durable construction for long-term use
• Versatile application in various industries

FEATURES:

• Extra-large hand chain opening for easy operation
• Sealed housing for protection against elements
• Cast steel safety latches for added security
• Dual pawl Weston style brake for reliable stopping
• Grade 100 load chain for strength and durability
• Patented fused brake design for enhanced safety
