Jet AL100-100-30 1-Ton Hand Chain Hoist w/ 30′ Lift (133130)

The Jet AL100-100-30 1-Ton Hand Chain Hoist w/ 30′ Lift (133130) is a 1-ton hand chain hoist designed for efficient and safe lifting of heavy materials. Its lightweight aluminum construction makes it easier to handle compared to traditional chain hoists, while offering a compact design for better maneuverability.

KEY FEATURES AND BENEFITS:

• Extra-Large Hand Chain Opening: For effortless pulling.
• Sealed Housing: Protects against elements.
• Dual Pawl Weston Style Brake: Enhances safety.
• Grade 100 Load Chain: Heat-treated for strength and zinc-plated for corrosion resistance.

SPECIFICATIONS:

• Load Capacity: 1 Ton (2200 lbs)
• Lift: 30 ft
• Load Chain Dimension: 5.6 x 15.7 mm
• Hand Chain to Lift Load 1′: 61
• Headroom: 11-5/8″
• Lbs. of Pull to Lift Capacity: 53
• Net Weight: 54.39 lbs
• Number of Fall: 1
• Country of Origin: China

HOW TO USE:

1. Inspect: Before use, carefully examine the chain hoist for any signs of damage or wear.
2. Attach: Securely attach the load hook to the lifting point of the load.
3. Position: Position the chain hoist at an appropriate height for safe operation.
4. Engage Brake: Ensure the brake is fully engaged before lifting.
5. Lift: Gradually pull the hand chain to lift the load.
6. Lower: To lower the load, slowly release the hand chain while controlling the descent with the brake.
7. Release: Once the load is safely lowered, disengage the brake.

BENEFITS OF USING Jet AL100-100-30 1-Ton Hand Chain Hoist w/ 30′ Lift (133130):

• Efficient Lifting: Effortlessly lift heavy materials with minimal physical exertion.
• Improved Safety: Safety features like cast steel safety latches and dual pawl brake protect both operator and load.
• Durability: Built with high-quality materials for long-lasting performance.
• Compact Design: Easier to store and transport compared to traditional chain hoists.
• Versatile: Suitable for various lifting applications in industrial and construction settings.

FEATURES:

• Lightweight Aluminum Construction: For ease of handling.
• Extra-Large Hand Chain Opening: Ensures effortless operation.
• Sealed Housing: Provides protection from environmental elements.

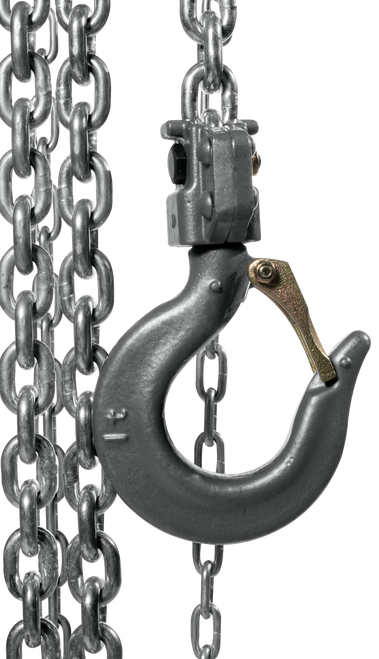

• Cast Steel Safety Latches: For enhanced safety.
• Dual Pawl Weston Style Brake: For reliable load holding.
• Grade 100 Load Chain: Heat-treated and zinc-plated for durability.
• Patented Fused Brake Design: Comes with a lifetime warranty.
• Complies with ANSI/ASME B30.16 and HAST-2 Standards: For industry-standard performance.
