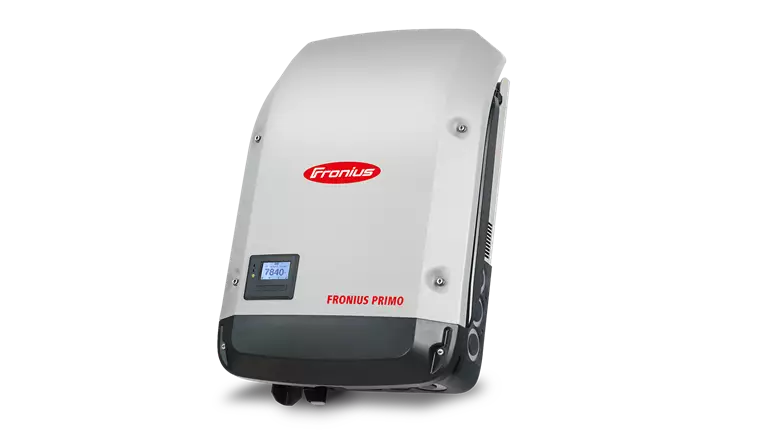

GENERAL DATA
|
Dimension / b
|
429 mm |
|---|---|
|
Dimension / h
|
627 mm |
| Weight | 21,5 kg |
| Dimension (width) | 429 mm |
| Dimension (height) | 627 mm |
| Dimension (depth) | 206 mm |
| Weight | 21,5 kg |
| Protection class | NEMA 4X |
| Night time consumption | < 1 W |
| Inverter topology | Transformerless |
| Cooling | Variable speed fan |
| Elevation | 4000 m (13120 ft) with a max. input voltage of 1000 V |
| Certificates and compliance with standards | UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H), UL1998 (for functions: AFCI, RCMU and isolation monitoring), IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B, NEC 2017 Article 690, C22. 2 No. 107.1-16, UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 – 2013 |
| DC connection terminals | 4x DC+ and 4x DC- screw terminals for copper (solid/stranded/fine stranded) or aluminium (solid/stranded) |
| AC connection terminals | Screw terminals 12 – 6 AWG |
| Revenue Grade Metering | Optional (ANSI C12.1 accuracy) |
INPUT DATA
| Number of MPPT | 2 |
|---|---|
| Recommended PV Power (kWp) | 6,1 – 11,7 kWp |
| Max. usable input current | 18,0 / 18,0 A |
|
Max. usable input current total (MPPT1 + MPPT2)
|
36 A |
|
Max. array short circuit current (1.5 * Imax)
|
27 / 27 A |
|
Nominal input voltage
|
420 V |
| Operating voltage range | 80 – 1000 V |
|
MPP Voltage Range
|
250 – 800 V |
|
Max. input voltage (Udc max)
|
1000 V |
OUTPUT DATA
| Max. output power 240 V | 7600 VA |
|---|---|
| Max. output power 208 V | 7600 VA |
|
Output configuration
|
1~NPE 208 / 204 V |
| Frequency range | 45 – 66 Hz |
| Nominal operating frequency | 60 Hz |
| Total harmonic distortion | < 5 % |
|
Power factor range
|
0,85 – 1 ind,/cap, |
| Max. continuous output current 240 V | 31,7 A |
| Max. continuous output current 208 V | 36,5 A |
| OCPD/AC breaker size 208 V | 50 A |
| Max. efficiency | 96,9 % |
| CEC efficiency 240 V | 96,0 % |
| CEC efficiency 208 V | 96,0 % |
