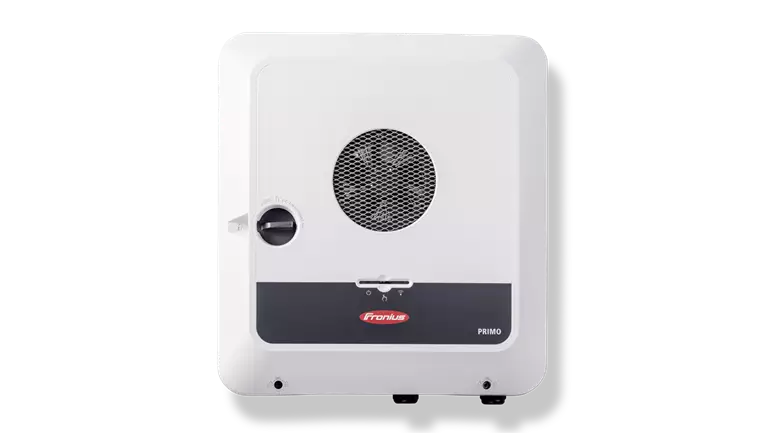

Input Data
| Number of MPP trackers | 2 |
|---|---|
Max. input current (Idc max) | 22 / 12 A |
Max. short circuit current, module array* | 36 / 19 A |
DC input voltage range (Udc min – Udc max) | 65 – 600 V |
Feed-in start voltage (Udc start) | 80 V |
Nominal input voltage (Udc,r) | 400 V |
MPP voltage range (Umpp min – Umpp max) | 230 – 530 V |
| Usable MPP voltage range | 65 – 530 V |
| Number of DC connections | 2+2 |
Max. PV generator power (Pdc max) | 7,5 kWpeak |
Output Data
AC nominal output (Pac,r) | 5000 W |
|---|---|
Max. output power (Pac max) | 5000 VA |
| Max. grid power demand | 5000 VA |
| Max. AC output current | 27,5 A |
Grid connection (Uac,r) | 1~ NPE 220/230 V |
AC voltage range (Umin – Umax) | 155 – 270 V |
Frequency (fr) | 50 / 60 Hz |
Frequency range (fmin – fmax) | 45 – 65 Hz |
Power factor (cos φac,r) | 0,8 – 1 ind./cap. |
| Back-up power | 1~NPE 220 V / 230 V |
Nom. AC-Ausgangsstrom (220VAC) | 22,7 A |
Nom. AC-Ausgangsstrom (230VAC) | 21,7 A |
Output Data PV Point
| Max continuous output power | 3000 VA |
|---|---|
Nom. output current (Iac max) | 13 A |
| Grid connection | 1~NPE 220 V / 230 V |
| Max. switchover time PV-Point | 15 s |
| Frequency in backup power mode | 53 Hz |
General Data
| Width | 474 mm |
|---|---|
| Height | 530 mm |
| Depth | 165 mm |
| Weight | 15,38 kg |
| Weight incl. packaging | 19 kg |
| Protection class | IP66 |
| Protection class | 1 |
Overvoltage category (DC / AC) 1) | 2 / 3 |
| Night-time consumption | < 10 W&nbsp;&nbsp; |
| Inverter design | Transformerless |
| Cooling | Active Cooling |
| Installation | Indoor and outdoor installation |
| Ambient temperature range | -40°C – +60°C |
| Permitted humidity | 0 – 100 % |
Max. altitude 2) | 4000 m |
| DC PV connection technology | 4x DC+ and 4x DC- push-in spring terminals 2.5 – 10 mm² |
| AC connection technology | 3 pole AC push-in spring terminals 2.5 – 10 mm² 3 pole backup power push-in spring terminals 1.5mm² – 10mm² 2x PE-screw terminals 2.5 – 16 mm² and 3x 2,5 – 10mm² |
| Certificates and compliance with standards | IEC 62109, IEC 62909, AS/NZS 4777.2, CEI 0-21, ABNT BNR 16149 und 16150, IEC 62116, IEC 61727, G98/G994) |
| Back-up power functions | PV Point |
| Sound emissions | 42 dB(A) |
| Interference emission class | B |
Efficiency
| Max. efficiency (PV – grid) | 97,6 % |
|---|---|
| European efficiency (ηEU) | 96.3 / 97.2 / 96.7 (230Vdc / 400Vdc / 530Vdc) |
η at 5% Pac,r 3) | 87.3 / 91.3 / 89.2 (230Vdc / 400Vdc / 530Vdc) |
η at 10% Pac,r 3) | 92.2 / 94.8 / 93.6 (230Vdc / 400Vdc / 530Vdc) |
η at 20% Pac,r 3) | 95.3 / 96.7 / 96.1 (230Vdc / 400Vdc / 530Vdc) |
η at 25% Pac,r 3) | 95.9 / 97.0 / 96.6 (230Vdc / 400Vdc / 530Vdc) |
η at 30% Pac,r 3) | 96.2 / 97.2 / 96.8 (230Vdc / 400Vdc / 530Vdc) |
η at 50% Pac,r 3) | 96.8 / 97.5 / 97.2 (230Vdc / 400Vdc / 530Vdc) |
η at 75% Pac,r 3) | 96.9 / 97.5 / 97.3 (230Vdc / 400Vdc / 530Vdc) |
η at 100% Pac,r 3) | 96.8 / 97.5 / 97.2 (230Vdc / 400Vdc / 530Vdc) |
| MPP adaptation efficiency | 99.9 |
Protection Devices
| DC insulation measurement | Yes |
|---|---|
| Overload behaviour | Operating point shift. Power limitation |
| DC disconnector | Yes |
| DC Reverse polarity protection | Yes |
Interfaces
| WLAN / 2x Ethernet LAN | Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|---|---|
| 6x digital in/out + 6x digital in | Interface to ripple control receiver, energy management |
| Emergency stop (WSD) | Yes |
| Datalogger and web server | Included |
| 2x RS485 | Modbus RTU SunSpec (third-party supplier) / Fronius Smart Meter, battery, Fronius Ohmpilot |
