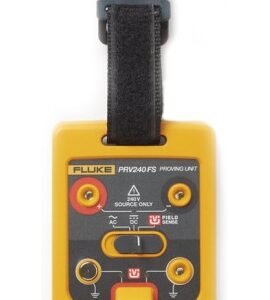

Fluke PRV240 Proving Unit, 240V

Fluke PRV240 OffersReduces the risk of shock and arc flash by removing unnecessary exposure to a potentially hazardous electrical environment while verifying the functionality of test tools before and after absence or presence of voltage is checked.

Features

Sources both AC and DC steady-state voltage – supplies 240 V DC/AC
A single LED indicates functionality, making this unit a simple-to-use solution for verification of your test tool
Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
Long battery life – 5,000 tests per set of four AA batteries

Test Before Touch
Provides a safe method to verify that your electrical test tool is operating properly before you conduct further tests. The concept of “Test Before Touch” (TBT) or three point test method involves testing your meter against a known live source before and after the actual measurement. This sequence verifies that your test tool is operating properly during the actual measurement.

Designed for safety and compliance
Safe and easy method for verifying proper operation of your test tool before attempting to test for either an energized source or a de-energized source without the need for cumbersome PPE, or in cases where no known voltage source is available. Your environment may still require minimal PPE such as hard, safety glasses or earplugs when using a proving unit.Fluke PRV240 OffersReduces the risk of shock and arc flash by removing unnecessary exposure to a potentially hazardous electrical environment while verifying the functionality of test tools before and after absence or presence of voltage is checked.

Features

Sources both AC and DC steady-state voltage – supplies 240 V DC/AC
A single LED indicates functionality, making this unit a simple-to-use solution for verification of your test tool
Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact
Long battery life – 5,000 tests per set of four AA batteries

Test Before Touch
Provides a safe method to verify that your electrical test tool is operating properly before you conduct further tests. The concept of “Test Before Touch” (TBT) or three point test method involves testing your meter against a known live source before and after the actual measurement. This sequence verifies that your test tool is operating properly during the actual measurement.

Designed for safety and compliance
Safe and easy method for verifying proper operation of your test tool before attempting to test for either an energized source or a de-energized source without the need for cumbersome PPE, or in cases where no known voltage source is available. Your environment may still require minimal PPE such as hard, safety glasses or earplugs when using a proving unit.

Fluke PRV240 Specifications

Output voltage: 240 V AC RMS or DC
±10 % ≥1 MΩ

Output voltage: LoZ >3 kΩ load
60 V AC typical; 50 V AC RMS minimum

LED power indicator
Turns on when output voltage is present

Battery
4 x AA Alkaline batteries NEDA (24 A IEC LR03)

Battery life
5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load

Operating temperature
-10 to +50 °C

Operating humidity
0 % to 90 % (0 to 35 °C)

Operating altitude
2000 m

Dimensions
11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2

Weight
0.23 kg (8 oz) includes batteries

Safety
IEC61010-1, IEC61010-2-030

Certification
CSA-CUS, CE

Click here for complete specifications on the Fluke PRV240

What’s included with the Fluke PRV240
Fluke PRV240 Proving Unit
TPAK Magnetic hanging strap
AA Batteries (x4)
Instruction Sheet
