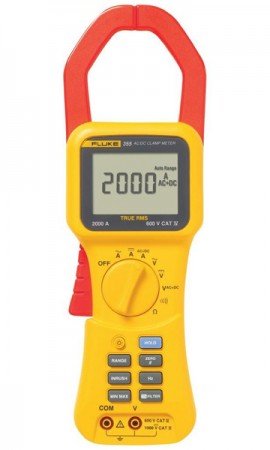

Confidently take reliable readings with the Fluke 355 AC/DC True-rms Clamp Meter – the tool of choice for high-current clamp-on amp meter measurements up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications and the extra rugged design has an extra element of user protection when taking high-powered measurements.
Industrial plants and large facilities often have equipment and installations that draw greater than 1000 A. As with other current measurements, it is not practical to disconnect the equipment to make a series of current measurements. The ability to check that an expensive system has been installed correctly, troubleshoot large loads, and make accurate measurements on UPS and Variable Frequency drives with noisy loads is also essential. In industrial settings, compliance with NFPA 70E safety standards, while making measurements, is critical. Fluke has addressed this by designing this product to meet CAT IV 600 V and CAT III 1000 V ratings.
Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads. Additionally, the Fluke 355 measures voltage to 1000 V DC and 600 V AC (True-rms) and resistance to 400 k ohms with a continuity beeper, allowing utility technicians, electrical contractors and industrial service technicians to perform multiple tests with only one tool.
Applications:
Utilities (low-voltage vaults)
Industrial plants and facilities
Building maintenance, e.g. universities, hospitals, large offices, correctional institutions
Plant works, e.g. power, pharmaceutical, printing, automotive assembly
Manufacturing and process facilities
Refineries
Steel mills and other metal manufacturing plants
Large DC systems such as DC electroplating, or marine electrical systemsConfidently take reliable readings with the Fluke 355 AC/DC True-rms Clamp Meter – the tool of choice for high-current clamp-on amp meter measurements up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications and the extra rugged design has an extra element of user protection when taking high-powered measurements.
Industrial plants and large facilities often have equipment and installations that draw greater than 1000 A. As with other current measurements, it is not practical to disconnect the equipment to make a series of current measurements. The ability to check that an expensive system has been installed correctly, troubleshoot large loads, and make accurate measurements on UPS and Variable Frequency drives with noisy loads is also essential. In industrial settings, compliance with NFPA 70E safety standards, while making measurements, is critical. Fluke has addressed this by designing this product to meet CAT IV 600 V and CAT III 1000 V ratings.
Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads. Additionally, the Fluke 355 measures voltage to 1000 V DC and 600 V AC (True-rms) and resistance to 400 k ohms with a continuity beeper, allowing utility technicians, electrical contractors and industrial service technicians to perform multiple tests with only one tool.
Applications:
Utilities (low-voltage vaults)
Industrial plants and facilities
Building maintenance, e.g. universities, hospitals, large offices, correctional institutions
Plant works, e.g. power, pharmaceutical, printing, automotive assembly
Manufacturing and process facilities
Refineries
Steel mills and other metal manufacturing plants
Large DC systems such as DC electroplating, or marine electrical systems
Fluke 355 Specifications
Current Measurement DC and AC 10 to 100 Hz
Range
40 A/400 A/2000 A/1400 AC RMS
Resolution
10 mA/100 mA/1 A
Accuracy
A: 1.5% rdg + 15 digits
A: 1.5% rdg + 5 digits
Trigger Level for Inrush
0.50 A/5.0 A/5 A
Trigger Level for Hz Filter OFF
2.50 A/2.5 A/8 A
Trigger Level for Hz Filter ON
0.50 A/2.5 A/8 A
Crest Factor (50/60 Hz)
Range
40 A/400 A/2000 A/1400 AC RMS
Crest Factor
2 at 33 A, 2.4 at 27 A
2 at 330 A, 2.4 at 270 A
2 at 1000 A, 2.4 at 833 A
Current Measurement AC 100.1 Hz to 1 kHz
Range
40 A/400 A/2000 A; 1400 AC RMS
Resolution
10 mA/100 mA/1 A
Accuracy
10 A: 3.5% rdg + 15 digits
10 A: 3.5% rdg + 5 digits
Trigger Level for Inrush
0.50 A/5.0 A/5 A
Trigger Level for Hz Filter OFF
2.50 A/2.5 A/8 A
Trigger Level for Hz Filter ON
0.50 A/2.5 A/8 A
Voltage Measurement DC and AC 10 to 100 Hz (600 and 1000 V ranges have 10% over range to 660 and 1100 V respectively)
Range
4 V/40 V/400 V/600 V AC RMS/1000 VDC
Resolution
1 mV/10 mV/100 mV/1 V
Accuracy
1% rdg + 10 digits
1% rdg + 5 digits
Trigger Level for Hz Filter OFF
0.25 V/6 V
Trigger Level for Hz Filter ON
0.25 V/6 V
Voltage measurement AC 100.1 Hz to 1 kHz (600 and 1000 V ranges have 10% over range to 660 and 1100 V respectively)
Range
4 V/40 V/400 V/600 V AC RMS/1000 VDC
Resolution
1 mV/10 mV/100 mV/1 V
Accuracy
3% rdg + 10 digits
3% rdg + 5 digits
Trigger Level for Hz Filter OFF
0.050 V/0.25 V/6 V
Trigger Level for Hz Filter ON
0.050 V/0.25 V /6 V
Ohms Measurement
Range
4 kΩ/40 kΩ/400 kΩ
Resolution
0.1 Ω/ 1 Ω/ 10 Ω/ 100 Ω
Accuracy
1.5% + 5 digits
Continuity Beeper
On and Off
On at ≤ 30 Ω
Off at > 100 Ω
Frequency Measurement
Measurement Range
5.0 Hz to 1 kHz
Resolution
0.1 Hz (15 Hz to 399.9 Hz)
1 Hz (400 Hz to 1 kHz)
Accuracy
5.0 to 100 Hz: 0.2% + 2 counts
100.1 Hz to 1 kHz: 0.5% + 5 counts
Environmental Specifications
Operating Temperature
32 to 122°F (0 to 50°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Operating Humidity
0 to 95% (non-condensing)
Operating Altitude
6561.68′ (2000 m)
Storage Altitude
32,808.4′ (10,000 m)
IP Rating
42 (indoor use only)
Drop Test Requirements
3.28′ (1 m)
EMI, RFI, EMC
FCC part 15, IEC/EN 61326-1:1997 class B IEC/EN 61326:1997 3V/m, performance criteria B, EN61325
Temperature Coefficients
Current: 0.1% of reading per °C outside 22 to 24°C
Voltage: 0.1% of reading per °C outside 22 to 24°C
General Specifications
Battery
Type: 6 x 1.5 V AA NEDA 15 A or IEC LR6
Life: 100 hours
Test Leads
Rated to 1000 V
Jaw Size
2.28″ (58 mm)
Dimensions
12 x 3.75 x 2″ (300 x 98 x 52 mm)
Weight
1.8 lbs (0.814 kg)
Safety Rating
IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III
Click here for complete specifications on the Fluke 355
What’s included with the Fluke 355
Clamp Meter
4.9′ (1.5 m) Silicone Rubber Test Leads
Test Probes
Alligator Clips
Carrying Case
6 x AA Batteries
Users Manual
3-Year Warranty
