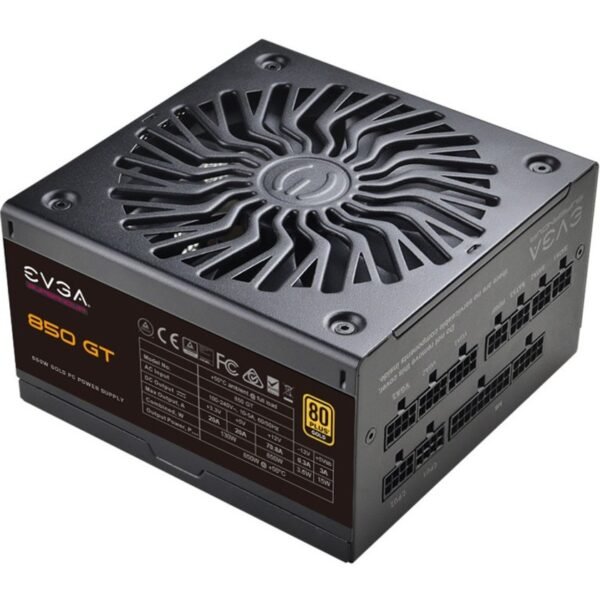

EVGA GT 850W Power Supply

EVGA GT 850W Power Supply
Compact – 120 V AC, 230 V AC Input – 5 V DC, 3.3 V DC, 12 V DC, -12 V DC Output – 850 W – 1 +12V Rails – 1 Fan(s) – 90% Efficiency

REFINEMENTIN PERFORMANCE AND DESIGN Upgrade both aesthetics and electronic components with a unique radial design fan grill, compact 150mm length and width, and 100% Japanese capacitors. 80 PLUS GOLD EFFICIENCY 80 PLUS Gold Certified. Ensures that your power supply is 90% efficient or higher. FLUID DYNAMIC BEARING The EVGA SuperNOVA GT uses a long-life 135mm fan with a Fluid Dynamic Bearing (FDB) for silence, reliability, and a longer life expectancy. SINGLE +12V OUTPUT Provides a stable output for compatibility with the latest hardware. FULLY MODULAR DESIGN Choose the cables you need to make cable management simple and clean. AUTO ECO MODE Fan RPM adapts to the PSU temperature. The fan will shut off in a low temperature/low load environment, resulting in reduced noise.

General Information

Manufacturer:

EVGA Corporation

Manufacturer Part Number:

220GT0850Y1

Manufacturer Website Address:

http://www.evga.com

Brand Name:

EVGA

Product Series:

GT

Product Model:

850 GT

Product Name:

GT 850W Power Supply

Marketing Information:

Product Type:

Power Supply

Technical Information

Efficiency:

90%

Number of Fans:

1

Modular:

Yes

Power Description

Number of +12V Rails:

1

Input Voltage:

120 V AC230 V AC

Output Voltage:

5 V DC3.3 V DC12 V DC-12 V DC

Output Voltage Detail:

5 V DC @ 20 A3.3 V DC @ 20 A12 V DC @ 70.8 A5 V DC @ 3 A-12 V DC @ 0.3 A

Output Current:

20 A70.80 A3 A300 mA

Output Power:

850 W

Physical Characteristics

Form Factor:

Compact

Height:

3.39″ (86 mm)

Width:

5.91″ (150 mm)

Weight (Approximate):

2.72 kg

Miscellaneous

Country of Origin:

Taiwan

Environmentally Friendly:

Yes

Energy Efficiency Certification:

80 Plus Gold

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty:

7 Year
