Eaton 9PX3000GRT 3000VA Tower/Rack Mountable UPS

Eaton 9PX3000GRT 3000VA Tower/Rack Mountable UPS
General Information

Manufacturer:

Eaton Corporation

Manufacturer Part Number:

9PX3000GRT

Manufacturer Website Address:

http://www.eaton.com/EatonCom/Markets/NorthAmerica

Brand Name:

Eaton

Product Series:

9PX

Product Model:

9PX3000GRT

Product Name:

9PX3000GRT 3000VA Tower/Rack Mountable UPS

Marketing Information:

3kVA/3kW/208V Battery Backup for IT Installations and Edge NetworksThis 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX3000GRT is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.Expandable Internal Battery Backup Keeps You Operational Through Power OutagesThe field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM72RT, sold separately) for hours of extended runtime.Optional Gigabit Network Interface Offers 24/7 Remote AccessThe NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don’t have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.10 Outlets Protect Your Connected ComponentsEight C13 and two C19 managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Five outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Product Type:

Double Conversion Online UPS

Technical Information

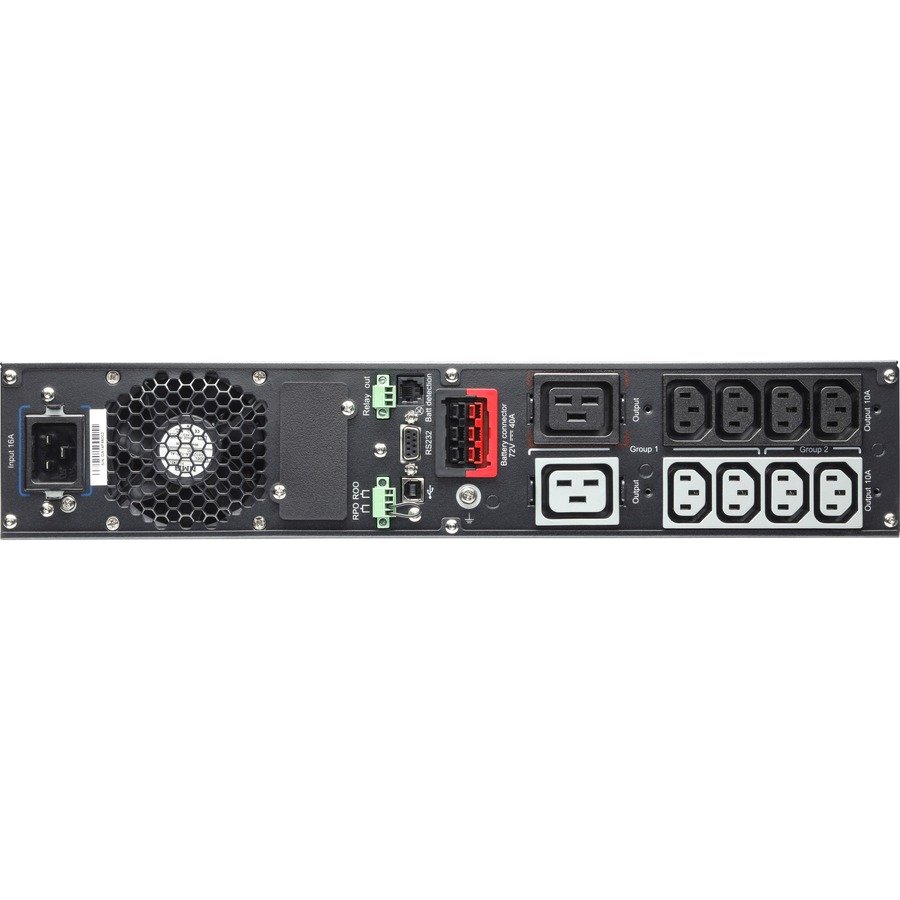

Receptacle Type:

IEC 60320 C19IEC 60320 C13

Receptacle Detail:

2 x IEC 60320 C198 x IEC 60320 C13

Transfer Time:

0 ns

Power Description

Load Capacity (VA):

3 kVA

Load Capacity (Watt):

3 kW

Input Voltage:

200 V AC208 V AC220 V AC230 V AC240 V AC

Output Voltage:

200 V AC208 V AC220 V AC230 V AC240 V AC

Physical Characteristics

Height:

3.40″ (86.36 mm)

Width:

17.30″ (439.42 mm)

Depth:

23.80″ (604.52 mm)

Rack Height:

2U

Form Factor:

Rack/Tower

Weight (Approximate):

27.40 kg

Miscellaneous

Package Contents:

9PX3000GRT 3000VA Tower/Rack Mountable UPS Safety Manual User Manual Output Cables (for G models) Input Cables (for G models) Cable Lockers (for G models) 4-Post Rail Kit Tower Pedestals RS-232 Serial Cable USB Cable Intelligent Power Software Suite CD

Energy Star:

Yes

Country of Origin:

Philippines

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

3 Year
