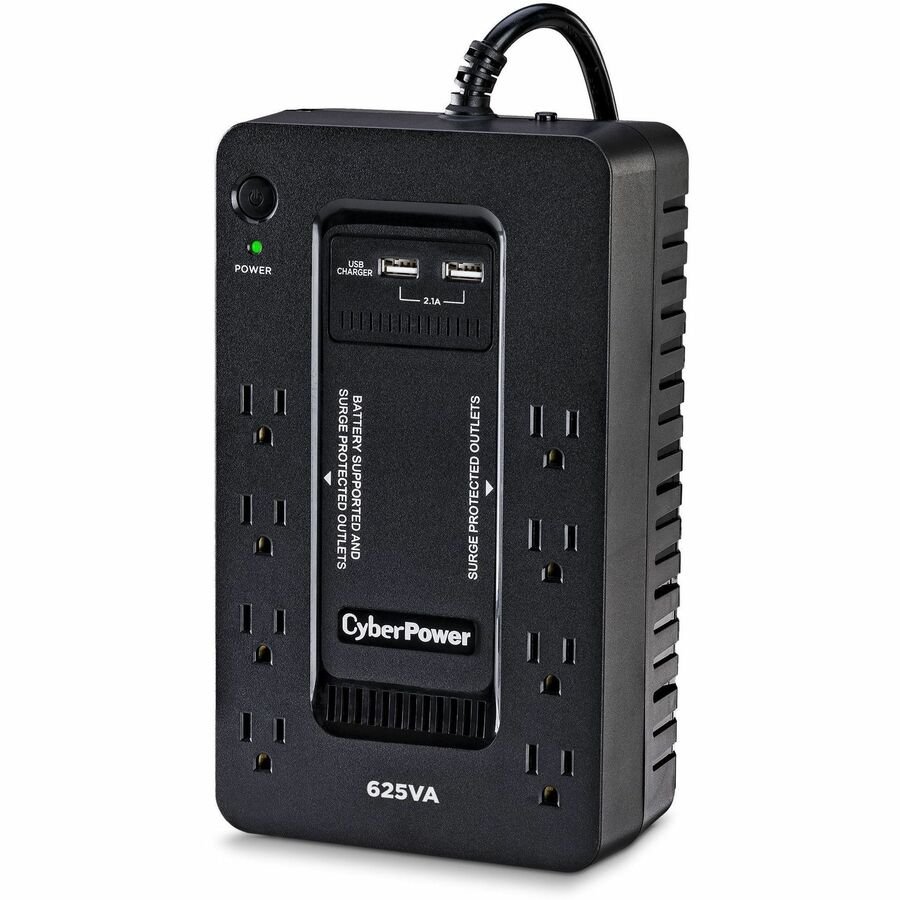

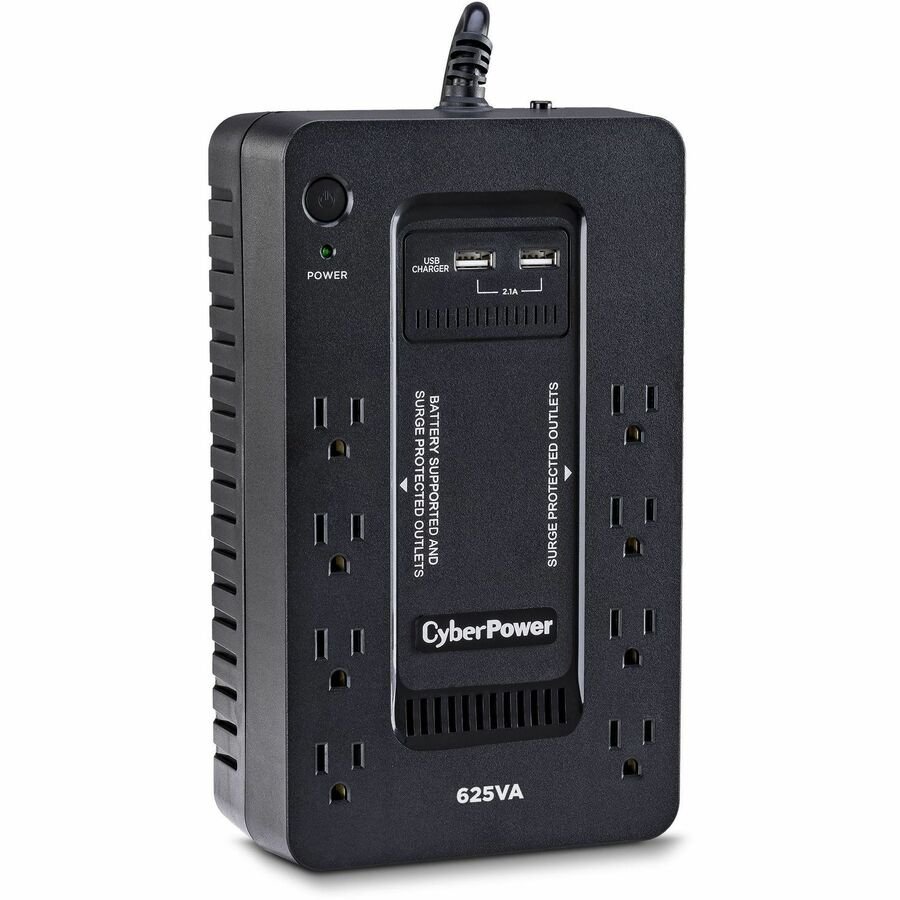

CyberPower Standby ST625U 625VA Compact UPS
Product Overview
The CyberPower ST625U uninterruptible power supply (UPS) system provides battery backup and surge protection for lightning-induced surges and other power events that can damage electronic equipment. This unit delivers enough battery backup to power connected electronics through utility power failure and enough runtime to perform a graceful shutdown to protect against the loss of data and damage to valuable electronics during longer outages.
The ST625U has two USB charging ports with 2.1 amp shared total output which gives you a faster charging time. This unit is designed to minimize noise for a quieter work environment and to run efficiently to reduce power consumption. Including a sleek design, this UPS is perfect for all your home office and entertainment needs, including computers, gaming consoles, and broadband routers.
With a $100,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of this Battery Backup with Surge Protection.
Product Features
- Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge ProtectionDiverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- USB Charge PortsRapidly charge and power USB devices whether the UPS is providing utility or battery backup power.
- Widely Spaced Outlet(s)The widely-spaced outlet allows you to conveniently add transformer-sized plugs without blocking other outlets.
- Simulated Sine Wave OutputUses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
- PowerPanel® Personal SoftwareIncludes a free software download that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
- ENERGY STAR®This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- GreenPower UPS™ High-Efficiency DesignReduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
- Three-Year WarrantyCyberPower will replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
- Connected Equipment GuaranteeCyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
Typical Applications
- Desktop Computers
- Home Networking
- Home Theater Equipment
- Personal Electronics
- Routers & Modems
- VoIP Phone Systems
- Workstations
| General | |
|---|---|
| Energy Saving | GreenPower UPS™ High-Efficiency |
| Energy Star Certified | Yes |
| UPS Topology | Standby |
| Battery | |
| Battery Quantity | 1 |
| Battery Size | 12 V / 5.5 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Field-serviceable Battery | Replaceable by qualified technician |
| Hot Swappable | No |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 9 min |
| Typical Recharge Time | 8 Hours |
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 5 ft (1.5 m) |
| Input Frequency Range | 47 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Output | |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Surge-Only Protected | 4 |
| Outlets – Total | 8 |
| Outlets – Widely Spaced | 4 |
| Output Power Factor | 0.6 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| Typical Transfer Time | 8 ms |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 2.1 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Standard | Type A |
| USB Charge Port Type | 2 Type A |
| USB Charge Port Voltage | 5 VDC |
| VA | 625 VA |
| Watts | 360 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Surge Suppression (Joules) | 890 J |
| Management & Communications | |
| Audible Alarms | Battery Mode Low Battery Overload Fault |
| HID Compliant USB Port | Yes |
| LED Indicators | Power On |
| Management Cable | USB Cable |
| Software (Free Download) | PowerPanel® Personal |
| Physical | |
| Color | Black |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 24.89 x 14.73 x 8.13 (cm) |
| Physical Dimensions – (WxHxD) (in) | 9.8 x 5.8 x 3.2 (in) |
| Physical Dimensions – (WxHxD) (mm) | 249 x 147 x 81 (mm) |
| Physical Weight (kg) | 2.27 |
| Physical Weight (lb) | 5 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 6.82 |
| Shipping – Weight (lb) | 15.04 |
| Shipping Dimensions – (WxHxD) (cm) | 36.2 x 11.43 x 20.32 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 14.25 x 4.5 x 8.0 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 361.95 x 114.3 x 203.2 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 cUL FCC DOC Class B CEC |
| Warranty | |
| CEG Amount | $100000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U1A |
| Product Warranty | 3 Year Limited Warranty |
