OVERVIEW

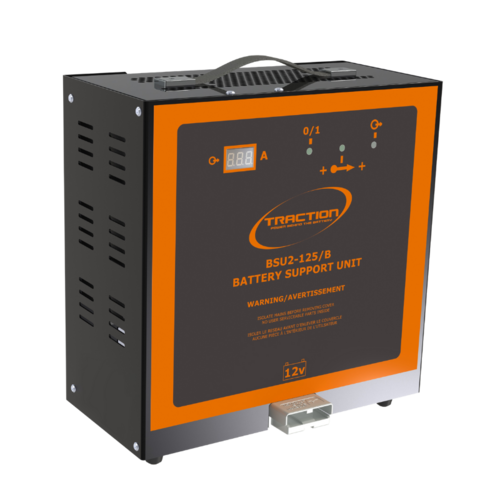

BSU2-125B (90A) provides a stable voltage and up to 90 amps of fully regulated power to prevent loss of charge and damage to the battery.
BSU2-125B (90A) can be used with any 12V automotive battery including AGM, GEL and Lithium (LiFePO4).
When the battery is charged the BSU is a regulated power supply to sustain accessory loads and offset parasitic drain.
BSU2-125B (90A) provides a constant voltage to prevent loss of data and possible damage to control units during software updates, and module reprogramming as well as diagnostic processes when in a Key On, Engine Off state.
During diagnostic or programming operations, the vehicle’s systems are operating solely from the battery. Maintaining battery charge during this process is critical.
Designed to be wall, ramp or trolley mounted the BSU2-125B (90A) has been designed to meet the needs of the high power consuming vehicle.
Compatible with LiFeP04 with 12V Lithium – All technologies
Comes with 15ft (4.6M) lead set and 6” (1.8M) C19 to 5-15P power cord.
Please note we are currently shipping direct from the UK so expect delivery in 1-2 weeks.
FEATURES
Designed for use in the workshop and compatible with most diagnostic trolleys.
Reverse polarity protection.
Output current display.
Supplied with 5m output leads.
The status of BSU2-125/B (90A) is indicated simply by three LED’s – POWER, POLARITY, DEMAND. When all 3 are illuminated, BSU2-125/B (90A) is supporting the battery.
Approved by Jaguar and Landrover.
SPECIFICATION
INPUT: 90-260v AC 50/60HZ
WEIGHT: 17.6lb
SIZE: 11.6”x10”x1.2”
OUTPUT: 13.4v up to 90A
