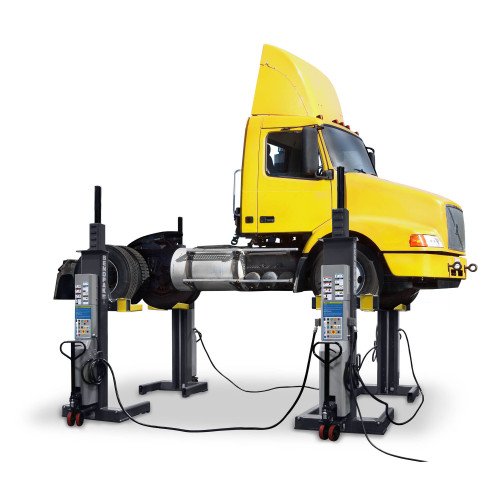

BendPak PCL-18B-4 High Voltage Mobile Column Lifts Set Of 4 (5175296)

The BendPak PCL-18B-4 High Voltage Mobile Column Lifts Set Of 4 (5175296) empowers you to safely and efficiently lift vehicles in your workshop. This versatile system, available in configurations of 2, 4, 6, or 8 columns, tackles a wide range of lifting tasks, from heavy-duty trucks and commercial semi-trucks to light-duty passenger vehicles.

KEY FEATURES AND BENEFITS:

• Impressive Lifting Capacity:
  • Single column lifting capacity of 18,000 lbs.
  • Set of 4 columns can lift up to 72,000 lbs.
  • Configurable to sets of 2, 4, 6, or 8 columns for additional lifting power.
• User-Friendly and Safe Operation:
  • Intuitive controls for full programming and operation from any column.
  • Self-diagnostics and calibration features for optimal performance.
  • Emergency shut-off switches and audible alarms for enhanced safety.
  • Standard parts for easy maintenance and repair.
• Designed for Efficiency and Durability:
  • Enclosed electric-hydraulic power system ensures quiet operation.
  • Pallet jack-style steering wheels for excellent maneuverability.
  • Low-mounted power units for a stable center of gravity.
  • Extended forks for wide tires and deep wheel configurations.
  • Multi-width wheel forks to eliminate the need for specialty adapters.
• Additional Features:
  • Meets or exceeds ANSI/ALI ALCTV-2011 safety standards.
  • Variable height limit settings for low ceilings or specific vehicle needs.
  • Two-speed lowering option for precise control.
  • Durable powder-coat finish for long-lasting durability.
  • Optional PCL-18B Cross Beam for enhanced wheel servicing capabilities.

SPECIFICATIONS:

• Lifting capacity per column: 18,000 lbs (8,165 kg)
• Maximum system capacity (with 4 columns): 72,000 lbs (ideal for two-axle vehicles)
• Power: 460/380 Volt, 50/60HZ, 3-phase (high voltage)
• Overall Height (Raised): 101” (2,565 mm)
• Overall Height (Lowered): 146.5” (3,721 mm)
• Maximum Lifting Height: 71.5” (1,889 mm)
• And more… (link to detailed specifications)

HOW TO USE:

1. Position the columns around the vehicle to be lifted.
2. Connect each column to the single control panel.
3. Maneuver the columns into place using the pallet jack-style steering wheels.
4. Activate the control panel to synchronize the columns.
5. Lift the vehicle by operating the control panel, ensuring all safety locks engage.
6. Perform the necessary maintenance or repairs.
7. Lower the vehicle by using the control panel, ensuring the safety locks disengage.
8. Store the columns safely when not in use.

BENEFITS OF USING THE BendPak PCL-18B-4 High Voltage Mobile Column Lifts Set Of 4 (5175296):

• Increased productivity with faster lifting and lowering cycles.
• Improved technician safety with easy operation and numerous safety features.
• Space-saving design ideal for busy workshops.
• Durable construction with a powder-coated finish for long-lasting performance.
• Reduced downtime with easy maintenance and readily available replacement parts.

FEATURES:

• 72,000 lbs maximum lifting capacity with a set of 4 columns.
• Available in versatile configurations of 2, 4, 6, or 8 columns.
• Compact design with pallet jack-style steering wheels for easy storage and maneuverability.
• Single control panel for synchronized operation of all lifts.
• Emergency shut-off switches and simultaneous stop button for safety.
• Durable steel construction with a powder-coat finish.
• Enclosed electric-hydraulic system for quiet operation.
• Low-mounted power units and cylinders for added stability and a low center of gravity.
• Extended forks accommodate wide tires and deep wheel configurations.
• Manual safety override valves on each column for lowering without hand cranks during power outages.
• Forklift pockets enable easy handling and movement of lift columns.
