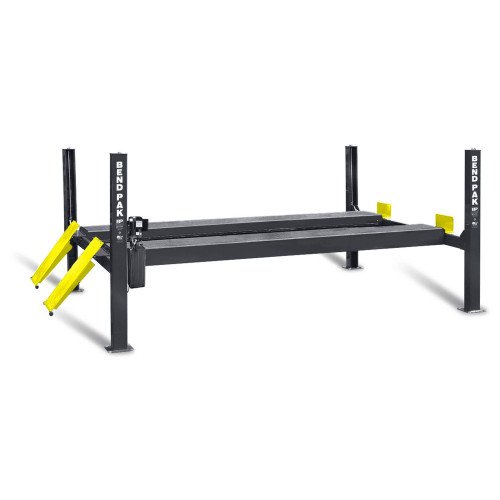

BendPak HDS18E 18000lb Capacity Standard Four Post Lift (5175968)

The BendPak HDS18E 18000lb Capacity Standard Four Post Lift (5175968) is your go-to solution for lifting a diverse range of vehicles and heavy equipment. With an impressive 18,000-lb. capacity, it effortlessly accommodates mid-size trucks, vans, SUVs, and even some industrial and farming machinery. This professional-grade lift provides the power you need without the excess of larger models, making it ideal for those who don’t require a full 20 tons of lifting capacity.

KEY FEATURES AND BENEFITS:

• Extended Runways: 263″ of front-to-back length easily accommodates vehicles with long wheelbases. The non-slip, treaded surface ensures a secure grip even when wet.
• Solid Foundation: Large 12″ x 12″ base plates provide exceptional stability for working on heavy-duty vehicles.
• Enhanced Durability: Supersized 12″ diameter cable sheaves and 4″ diameter sheave axles minimize cable wear and extend the life of critical components.
• Galvanized Aircraft Cables: Four durable cables resist abrasion and fatigue, ensuring long-term reliability.
• Easy Maintenance: Conveniently located grease nipples on every sheave and axle simplify lubrication.
• Advanced Safety Features: Spring-loaded safety locks engage automatically, and a secondary lock system provides backup protection in the unlikely event of cable failure.
• Smooth Operation: The maintenance-free electric-hydraulic power system delivers effortless lifting and lowering.
• Customizable: Adjustable height locking positions cater to various work heights and storage needs.

SPECIFICATIONS:

• Lifting Capacity: 18,000 lbs. (8,165 kg)
• Extended Runways: 263″ (6676 mm)
• Base Plate Dimensions: 12″ x 12″ (305 mm x 305 mm)
• Cable Sheave Diameter: 12″ (305 mm)
• Sheave Axle Diameter: 4″ (102 mm)

HOW TO USE:

1. Position the vehicle securely on the lift’s runways.
2. Engage the spring-loaded safety locks.
3. Activate the electric-hydraulic power system to raise the lift to the desired height.
4. Perform maintenance or repair tasks as needed.
5. Lower the lift smoothly using the control system.
6. Ensure all safety mechanisms are disengaged before removing the vehicle.

BENEFITS OF USING THE BendPak HDS18E 18000lb Capacity Standard Four Post Lift (5175968):

• High lifting capacity for a diverse range of vehicles and equipment
• Enhanced durability and reliability for long-term use
• Easy maintenance and smooth operation
• Advanced safety features for worry-free lifting

FEATURES:

• Extended runways for accommodating long wheelbases
• Large 12″ x 12″ base plates for exceptional stability
• Supersized 12″ diameter cable sheaves and 4″ diameter sheave axles
• Galvanized aircraft cables for durability
• Convenient grease nipples for easy maintenance
• Spring-loaded safety locks and secondary lock system
• Maintenance-free electric-hydraulic power system
• Adjustable height locking positions for customization
