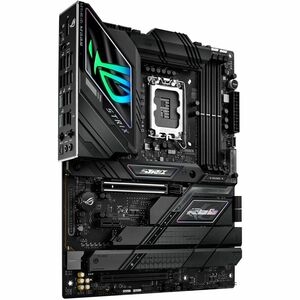

Asus ROG Strix Z790-F GAMING WIFI II Gaming Desktop Motherboard – Intel Z790 Chipset – Socket LGA-1700 – ATX
Core, Pentium Gold, Celeron Processor Supported – 192 GB DDR5 SDRAM Maximum RAM – DIMM, UDIMM – 4 x Memory Slots – Gigabit Ethernet – 2.5Gigabit Ethernet – IEEE 802.11be – HDMI – DisplayPort – 4 x SATA Interfaces

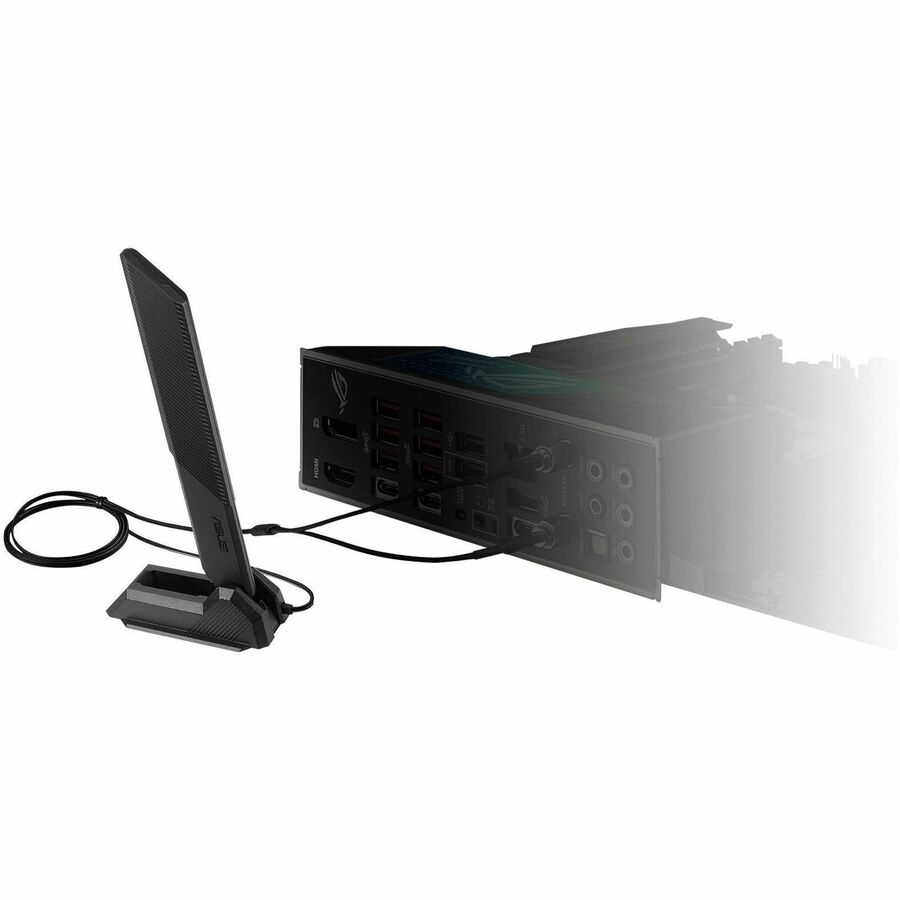

The ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.Q-ANTENNAWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.PCIE SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.FLASHBACKThe Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.START BUTTONThis convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ? CPU, RAM, graphics card, storage devices ? are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed–even before attempting to boot a newly built PC.ALL-ROUND PERFORMANCERobust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-F II at its center.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.PCIE 5.0The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.DDR5 DOMINATIONROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the Strix Z790-F II, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.DIMM FlexDIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules. It employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings. When temperatures are nominal, it can use the extra headroom to increase speeds and efficiency. And when temperatures increase, it can adjust memory behavior downward to maintain stability.
General Information
Manufacturer:
ASUS Computer International
Manufacturer Part Number:
ROGSTRIXZ790FGAMINGWIFIII
Manufacturer Website Address:
http://www.asus.com
Brand Name:
Asus ROG
Product Line:
Strix
Product Model:
Z790-F GAMING WIFI II
Product Name:
STRIX Z790-F GAMING WIFI II Gaming Desktop Motherboard
Marketing Information:
Product Type:
Gaming Desktop Motherboard
Processor & Chipset
Chipset Manufacturer:
Intel
Chipset Model:
Z790
Total Processor Supported:
1
Processor Socket:
Socket LGA-1700
Processor Generation Supported:
14th Gen13th Gen12th Gen
Processor Supported:
CorePentium GoldCeleron
Memory
Number of Memory Slots:
4
Memory Form Factor:
DIMMUDIMM
Maximum Memory Supported:
192 GB
Memory Technology:
DDR5 SDRAM
Memory Speed Supported:
8000 MHz7800 MHz7600 MHz7400 MHz7200 MHz7000 MHz6800 MHz6600 MHz6400 MHz6200 MHz6000 MHz5800 MHz5600 MHz5400 MHz5200 MHz5000 MHz4800 MHz
I/O Controller
Controller Type:
Serial ATA/600
RAID Supported:
Yes
RAID Levels:
01510
Video
Onboard Video:
CPU Dependent Video
Audio
Audio Channels:
5.1
Network & Communication
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 5.4
Gigabit Ethernet:
Yes
2.5Gigabit Ethernet:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots:
3.0
PCI Express Standard:
PCI Express 5.0PCI Express 4.0PCI Express 3.0
Total Number of PCI Express Slots:
3
Number of PCI Express x1 Slots:
1
Number of PCI Express x16 Slots:
2
Interfaces/Ports
Total Number of USB Ports:
14
S/PDIF:
Yes
HDMI:
Yes
HDMI Version:
2.1
DisplayPort:
Yes
Number of Network (RJ-45) Ports:
1
Thunderbolt:
Yes
Number of Thunderbolt 4 Ports:
1
Onboard Interfaces
Number of SATA Interfaces:
4
Number of M.2 Interfaces:
5
Total Number of Onboard USB Ports:
7
Number of Onboard USB 2.0 Ports:
4
Physical Characteristics
Form Factor:
ATX
Width:
12″ (304.80 mm)
Depth:
9.60″ (243.84 mm)
Miscellaneous
Brand Compatibility:
Intel
?
