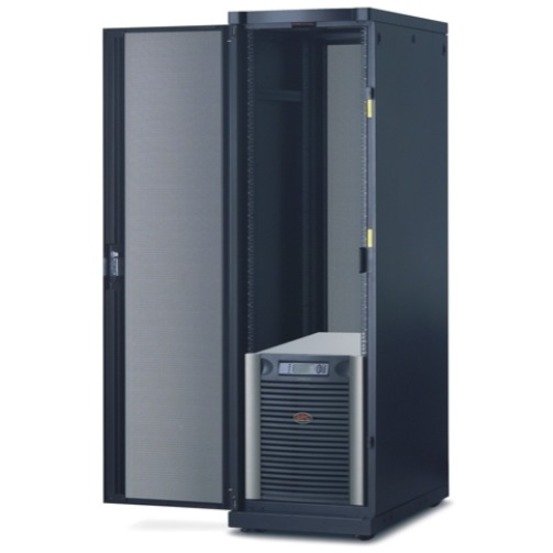

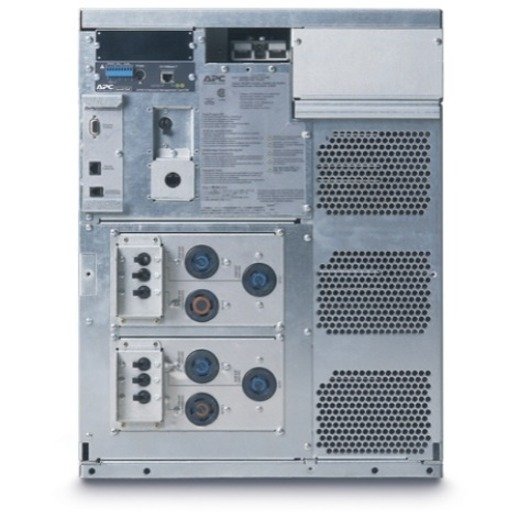

APC Symmetra LX 8kVA Rack mountable UPS

APC Symmetra LX 8kVA Rack mountable UPS
General Information

Manufacturer:

Schneider Electric SA

Manufacturer Part Number:

SYA8K8RMP

Manufacturer Website Address:

http://www.schneider-electric.com

Brand Name:

APC by Schneider Electric

Product Line:

Symmetra

Product Series:

LX

Product Name:

Symmetra LX 8kVA Rack mountable UPS

Marketing Information:

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks. More from the Manufacturer

Product Type:

Double Conversion Online UPS

Technical Information

Plug/Connector Type:

Hard Wire 4-wire

Receptacle Type:

NEMA L5-20RNEMA L14-30R

Receptacle Detail:

2 x NEMA L14-30R4 x NEMA L5-20R

Number of Battery & Surge Outlets:

7

Overload Protection:

Yes

Power Description

Load Capacity (VA):

8 kVA

Input Voltage:

208 V AC

Output Voltage:

120 V AC208 V AC

Input Current:

37 A

Waveform Type:

Sine Wave

Management

Network Management:

SNMP Manageable

Alarm:

Low BatteryOverloadUPS Fault

Bypass Switch:

Automatic & ManualExternal (Optional)

Emergency Power OFF:

Yes

Controls/Indicators

Status Indicators:

On-lineOn-batteryCommand-BypassFault

Interfaces/Ports

Modular Slots:

1 x SmartSlot

Battery Information

Battery Characteristics:

Spill-proof/Maintenance-free

Battery Chemistry:

Lead Acid

Backup/Run Time (Full Load):

5.90 Minute

Backup/Run Time (Half Load):

17 Minute

Typical Battery Recharge Time:

3 Hour

Environmental Conditions

Maximum Operating Temperature:

104°F (40°C)

Thermal Dissipation:

3707 BTU/h

Physical Characteristics

Color Family:

Dual Color

Product Color:

BlackSilver

Form Factor:

Rack-mountable

Rack Height:

13U

Mounting Location:

Front

Mounting Preference:

Lower

Height:

22.52″ (572 mm)

Width:

18.58″ (472 mm)

Depth:

27.09″ (688 mm)

Weight (Approximate):

178.18 kg

Miscellaneous

Package Contents:

Symmetra LX 8kVA Rack mountable UPS CD with softwareDocumentation CDInstallation guideUser manualWeb/SNMP management card

Additional Information:

Output Voltage Distortion: less than 5% at full loadCrest Factor: up to 5 : 1Pre-Installed Batteries: 2Replacement battery cartridge Quantity: 2

Certifications & Standards:

CSA

Green Premium:

Yes

Optimized Energy Efficiency:

Yes

Product Take Back Program:

Yes

RoHS Exemption Information:

https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K8RMP_ROHS_DECLARATION&p_FileName=SYA8K8RMPKIT_ROHS_DECLARATION_US.pdf

REACH Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036101&lang=en-us

EU RoHS Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036101&lang=en-us

Environmental Profile Availability:

https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712017_V1

End of Life Manual Availability:

https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712017_V1

California Proposition 65 Warning:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

REACH free of SVHC:

No

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

2 Year

Additional Warranty Information:

2 years repair or replace
