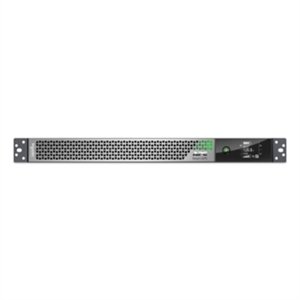

APC by Schneider Electric Smart-UPS Ultra 3000VA Rack/Tower UPS

General Information

Manufacturer:

Schneider Electric SA

Manufacturer Part Number:

SRTL3KRM1UNC

Manufacturer Website Address:

http://www.schneider-electric.com

Brand Name:

APC by Schneider Electric

Product Line:

Smart-UPS Ultra

Product Name:

Smart-UPS Ultra 3000VA Rack/Tower UPS

Marketing Information:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L5-30P input, 5x NEMA 5-20R and 1x NEMA L5-30R outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications. More from the Manufacturer

Product Type:

Standby UPS

Technical Information

Plug/Connector Type:

NEMA L5-30P

Receptacle Type:

NEMA L5-30RNEMA 5-20R

Receptacle Detail:

1 x NEMA L5-30R5 x NEMA 5-20R

Number of Battery & Surge Outlets:

6

Cord Length:

8 ft

Application/Usage:

ServerVoice/Data NetworkRetail and WholesaleMedicalLight Industrial Application

Power Description

Load Capacity (VA):

2.88 kVA

Load Capacity (Watt):

2.88 kW

Input Voltage:

120 V125 V

Output Voltage:

120 V AC

Input Frequency:

60 Hz

Output Frequency:

60 Hz

Waveform Type:

Sine Wave

Management

Network Management:

Network-MS Card

Controls/Indicators

Status Indicators:

Multifunction LCD

Interfaces/Ports

Network (RJ-45):

Yes

USB (HID Compliant) Port:

Yes

Battery Information

DC System Voltage:

50 V DC

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Energy:

1123.2 kJ

Typical Battery Recharge Time:

1.50 Hour

Environmental Conditions

Maximum Operating Temperature:

104?F (40?C)

Storage Temperature:

5?F (-15?C) – 113?F (45?C)

Storage Relative Humidity:

0% – 95%

Sound Emission:

55 dB

Physical Characteristics

Color Family:

Silver

Product Color:

Silver Gray

Height:

1.69″ (43 mm)

Width:

17.01″ (432 mm)

Depth:

22.05″ (560 mm)

Rack Height:

1U

Form Factor:

Rack/Tower

Weight (Approximate):

15.90 kg

Miscellaneous

Package Contents:

Smart-UPS Ultra 3000VA Rack/Tower UPS RJ45 Cable USB Cable Country-Specific Detachable Power Cord Rack Mounting Brackets Rack Mounting Support Rails Installation Guide Warranty Card

Certifications & Standards:

UL/cUL listedFCC

Green Premium:

Yes

Mercury Free:

Yes

RoHS Exemption Information:

https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UNC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UNCKIT_ROHS_DECLARATION_US.pdf

REACH Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=540735187&lang=en-us

EU RoHS Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=540735187&lang=en-us

Environmental Profile Availability:

https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1

End of Life Manual Availability:

https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1

REACH free of SVHC:

No

Toxic Heavy Metal Free:

Yes

Country of Origin:

Philippines

Environmentally Friendly:

Yes

Environmental Compliance:

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty:

5 Year

Additional Warranty Information:

5 years repair or replace
