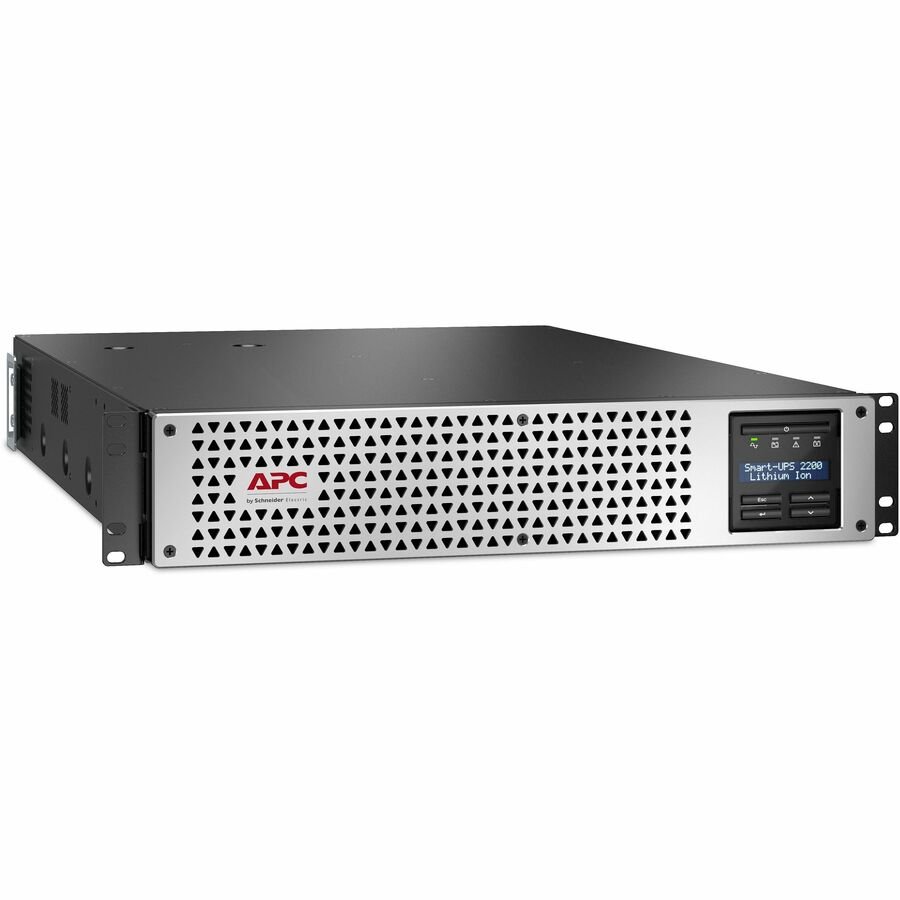

APC by Schneider Electric Smart-UPS 2200VA Rack-mountable UPS

General Information

Manufacturer:

Schneider Electric SA

Manufacturer Part Number:

SMTL2K2RM2UCL

Manufacturer Website Address:

http://www.schneider-electric.com

Brand Name:

APC by Schneider Electric

Product Line:

Smart-UPS

Product Name:

Smart-UPS 2200VA Rack-mountable UPS

Marketing Information:

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 6 NEMA 5-20R and 1 NEMA L5-20R outlets. It offers remote cloud-based UPS monitoring that is accessible from any internet connected device. Feature availability varies with terms of use. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Packaged Quantity:

1

Product Type:

Line-interactive UPS

Technical Information

AVR:

Yes

Plug/Connector Type:

NEMA L5-20P

Receptacle Type:

NEMA L5-20P

Receptacle Detail:

1 x NEMA L5-20R6 x NEMA 5-20R

Cord Length:

8 ft

Transfer Time:

10 ms

Application/Usage:

ITNetworkBusinessCritical SystemServerVirtual MachineHyperconverged Infrastructure (HCI)POSRouterSwitchHub

Power Description

Load Capacity (VA):

1.92 kVA

Load Capacity (Watt):

1.92 kW

Input Voltage:

110 V120 V125 V

Input Voltage Range:

75 V AC -154 V AC82 V AC – 143 V AC

Output Voltage:

110 V AC120 V AC125 V AC

Input Frequency:

60 Hz

Output Frequency:

60 Hz

Waveform Type:

Sine Wave

Surge Energy Rating:

530 J

Display & Graphics

Display:

LCD/LED

Management

Network Management:

SmartConnect

Alarm:

On BatteryLow BatteryOverload

Controls/Indicators

Status Indicators:

LED Indicators: On Line On Battery Replace Battery Overload

Interfaces/Ports

USB:

Yes

EPO Port:

Yes

Battery Information

Number of Batteries:

1

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Energy:

1209.6 kJ

Backup/Run Time (Full Load):

7.80 Minute

Backup/Run Time (Half Load):

16.40 Minute

Battery Life:

10 Year

Typical Battery Recharge Time:

2 Hour

Environmental Conditions

Maximum Operating Temperature:

104?F (40?C)

Storage Temperature:

5?F (-15?C) – 113?F (45?C)

Maximum Operating Elevation:

10000 ft (3048000 mm)

Maximum Storage Elevation:

50000 ft (15240000 mm)

Sound Emission:

55 dB

Thermal Dissipation:

215 BTU/h

Physical Characteristics

Color Family:

Dual Color

Product Color:

BlackSilver

Height:

3.39″ (86 mm)

Width:

17.01″ (432 mm)

Depth:

26.89″ (683 mm)

Rack Height:

2U

Form Factor:

Rack-mountable

Mounting Preference:

Lower

Weight (Approximate):

31.90 kg

Miscellaneous

Package Contents:

Smart-UPS 2200VA Rack-mountable UPSRack Mounting bracketsRack Mounting support railsScrewWasherUSB cableEthernet patch cable

Certifications & Standards:

ENERGY STAR V2.0 (USA)|cULus

Software Included:

Powerchute Serial Edition

Energy Star:

Yes

Green Premium:

Yes

Mercury Free:

Yes

RoHS Exemption Information:

https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL2K2RM2UCL_ROHS_DECLARATION&p_FileName=SMTL2K2RM2UCLKIT_ROHS_DECLARATION_US.pdf

REACH Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168923&lang=en-us

EU RoHS Declaration URL:

https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168923&lang=en-us

Environmental Profile Availability:

https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN

End of Life Manual Availability:

https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN

Energy Star URL:

https://www.energystar.gov/products/uninterruptible_power_supplies

REACH free of SVHC:

No

WEEE Statement:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environmentally Friendly:

Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

5 Year

Additional Warranty Information:

5 year repair or replace

Directly Connected Equipment Guarantee:

$150000 Lifetime
